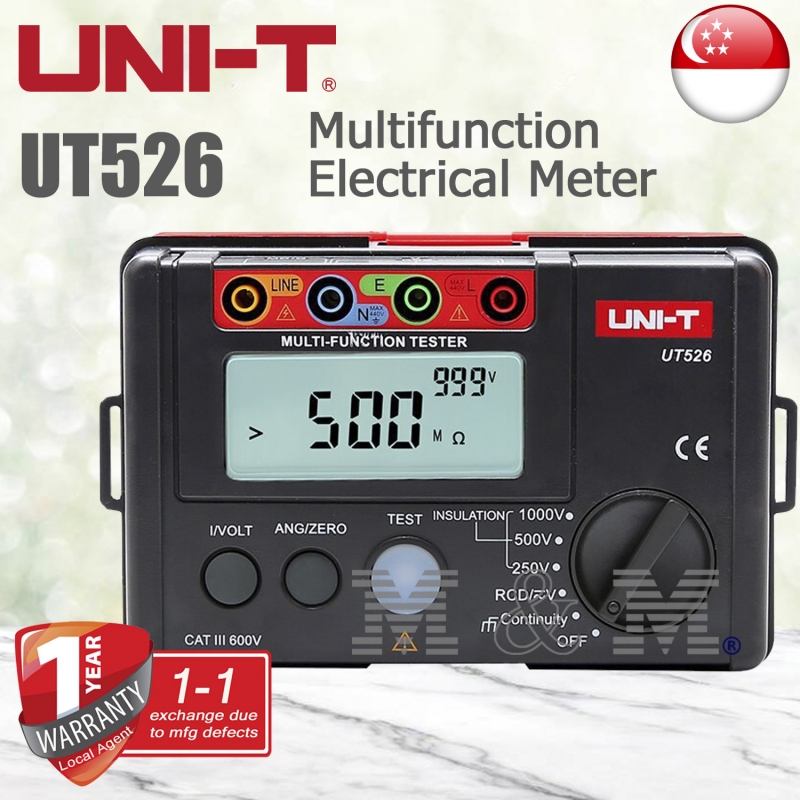

UNI-T UT526 Multifunction Electrical Meter

Model UT526

Condition New

UT526 is a multifunctional electrical installation tester. It can be used to test insulation resistance, RCD status, low resistance continuity, and voltage measurements. UT526 can be used to test power distribution system, lightning protection system and wiring systems to ensure safe operations.

Features of UT526 Multifunction Electrical Meter

Certificates: CE, UKCA

● Display count: 10000

● Manual range

● Phase switch (RCD): 0°and 180°

● Low battery indication

● Auto AC/DC voltage identification

● Red warning lights

Ex-stock subject to prior sales, otherwise lead time 6 to 8 weeks

More details

5 Item Items

Write a review

By buying this product you can collect up to 28 loyalty points. Your cart will total 28 points that can be converted into a voucher of S$ 5.60.

Send to a friend

Send to a friend

UNI-T UT526 Multifunction Electrical Meter

UT526 is a multifunctional electrical installation tester. It can be used to test insulation resistance, RCD status, low resistance continuity, and voltage measurements. UT526 can be used to test power distribution system, lightning protection system and wiring systems to ensure safe operations.

Features of UT526 Multifunction Electrical Meter

Certificates: CE, UKCA

● Display count: 10000

● Manual range

● Phase switch (RCD): 0°and 180°

● Low battery indication

● Auto AC/DC voltage identification

● Red warning lights

Ex-stock subject to prior sales, otherwise lead time 6 to 8 weeks

Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Print

S$ 288.00

Quantity:

Add to my wishlist

More info

Specifications		Range	UT526
Insulation resistance (Ω)	Test voltages	250V/500V/1000V	±10%
	250V	0.05MΩ~200MΩ	±(5%+5)
	500V	0.05MΩ~300MΩ	±(5%+5)
	1000V	0.05MΩ~500MΩ	±(5%+5)
	Load current	250V (R=250kΩ) 1mA	±10%
		500V (R=500kΩ) 1mA	±10%
		1000V (R=1MΩ) 1mA	±10%
	Short circuit current	<2mA	√
RCD	Operating voltage (Freq.)	220V (45Hz~65Hz)	±10%
	Test current	10mA/30mA/100mA/300mA	0~20%
	Trip time	0ms~2000ms, 1Δn general (10mA)	±(5%+2)
		0ms~500ms, 1Δn general
		0ms~300ms, 1Δn general (100mA, 300mA)
Low resistance continuity	Range	0Ω~2000Ω	±(2%+5)
	Test voltage	Around 5V	√
	Test current	>200mA (R<2Ω)	√
Voltage measurement (V)	DC voltage	0~440V	±(5%+2)
	AC voltage	0~440V	±(5%+2)
	Frequency (For reference only)		√
Features
Display count			10000
Manual range			√
Phase switch (RCD)	0°and 180°		√
Low battery indication			√
Auto AC/DC voltage identification			√
Red warning lights			√
General Characteristics
Power	1.5V battery (LR6) x 6
Display	71mm x 34mm
Product color	Red and grey
Product net weight	380g
Product size	160mm x 100mm x 71mm
Standard accessories	Batteries, carrying bag, gallus, test leads, alligator clips, test line
