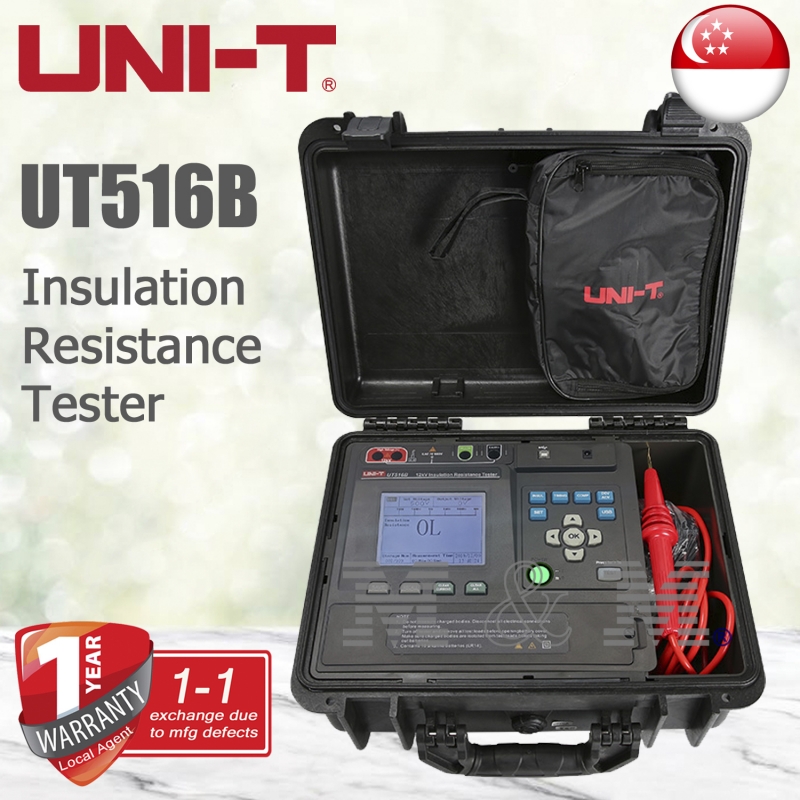

UNI-T UT516B Insulation Resistance Tester

UT516B

New

The UT516B is a digital high voltage insulation resistance tester with 6 ranges: 500V, 1000V, 2500V, 5000V, 10000V and 12000V. Fine adjustment of voltage with 10% step at each range (except 12000V) is available. Test data can be saved in the tester memory and transferred to a PC via the dedicated USB cable, or be transferred to a PC in real time. The tester, with high performance and easy operation, is widely used in the measurement and maintenance of power equipment and power supply circuits.

Features of UT516B Insulation Resistance Tester

● AC/DC voltage
● USB data transfer
● Low battery indication
● Data storage
● LCD backlight
● Polarization Index
● Over-range alarm
● 9999 Max display
● Comparative measurement
● Measurement time selection

Ex-stock subject to prior sales, otherwise lead time 6 to 8 weeks

More details

1 Item

Hurry, Selling Fast!

By buying this product you can collect up to 195 loyalty points. Your cart will total 195 points that can be converted into a voucher of S$ 39.00.


S$ 1,950.00

More info

Specifications Range UT516B
Insulation Resistance Measurement 500V 0.50MΩ~4.99G ±(5%+5)
5.00G-49.9GΩ ±(10%+10)
50.0GΩ-500GΩ for reference only
1000V 1.00MΩ-9.99GΩ ±(5%+5)
10.0G-99.9GΩ ±(15%+10)
100GΩ-1000GΩ for reference only
2500V 2.50MΩ-24.9GΩ ±(5%+5)
25.0G-249GΩ ±(15%+10)
250GΩ-2.5TΩ for reference only
5000V 5.00MΩ-49.9GΩ ±(5%+5)
50G-499GΩ ±(15%+20)
500GΩ-5.0TΩ for reference only
10000V 10.0MΩ-99.9GΩ ±(10%+10)
100G-999GΩ ±(20%+20)
1000GΩ-10TΩ for reference only
12000V 12.0MΩ-99.9GΩ ±(10%+10)
100G-999GΩ ±(20%+20)
1000GΩ-10TΩ for reference only
Output voltage 500V 0~+10%
1000V 0~+10%
2500V 0~+10%
5000V 0~+10%
10000V -5~+10%
12000V -5~+10%
Load current 500V (R=500KΩ) 1mA 0%—+20%
1000V (R=1MΩ) 1mA 0%—+20%
2500V (R=2.5MΩ) 1mA 0%—+20%
5000V (R=5MΩ) 1mA 0%—+20%
10000V (R=10MΩ) 0.15~1.2mA 0%—+20%
12000V (R=12MΩ) 0.15~1.2mA 0%—+20%
DC voltage measurement 30V~1000V ±(3%+5)
AC voltage measurement 30V~750V (50~60Hz) ±(3%+5)
Features
PC software for data analysis
Backlight Function
Date storage 999 sets of date
Dielectric Absorption Ratio (DAR) 0.00~999
Polarization Index (PI) 0.00~999
General Characteristics
Power 1.5V alkaline batteries (LR14)  X 10, power adapter
Product color Red and grey
Product net weight 6.6kg
Product size 410*342*204mm
Standard accessories User manual, Test leads (red/black/green 1 each),  USB cable, power adaptor, 1.5V alkaline batteries,
