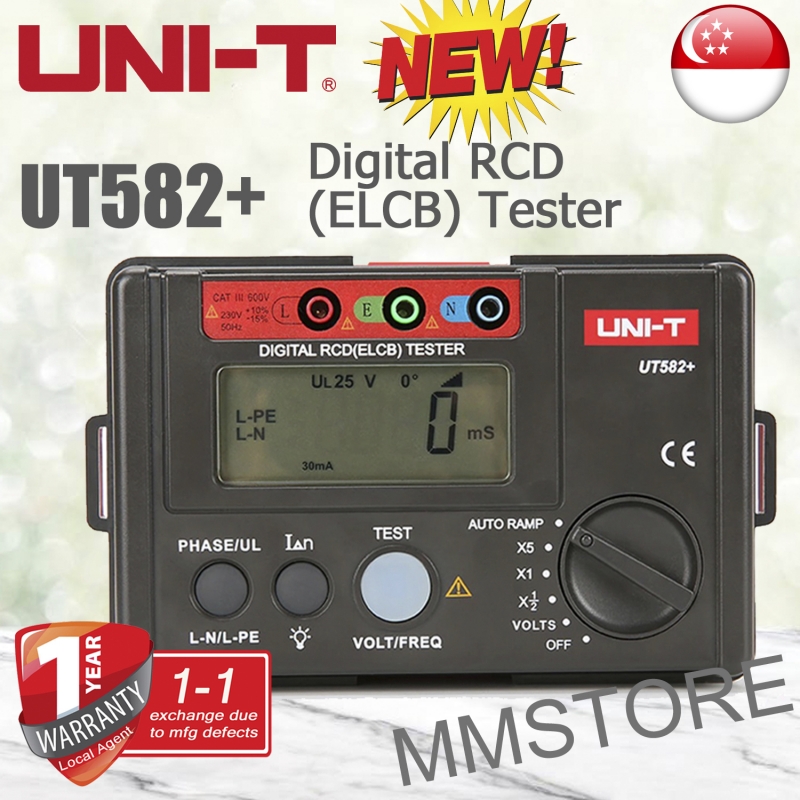

UNI-T UT582+ Digital RCD (ELCB) Tester

UT582+

New

UT582+ is mainly used to detect whether the RCD in the circuit can be triggered normally. It is only suitable for single-phase circuits with the supply voltage range of 195V~253V. Its voltage measurement range is 30V~600V, 45Hz ~65Hz.

  1. RCD test wiring check;
  2. RCD test phase angle selection (positive 0 and negative 180 half cycle test)
  3. Automatic data retention
  4. Overrange display
  5. FUSE security protection
  6. AUTO RAMP test (20%~110% step function, 10% increase step)
  7. simultaneously displays trip time and operating current
  8. Auto power off function, backlight function Voltage and frequency test function (voltage 30V~600V frequency: 45Hz~65Hz)
  9. Battery powered 6 1.5V alkaline batteries Low voltage tips
  10. Double insulated or reinforced insulation safety construction

Ex-stock subject to prior sales, otherwise lead time 6 to 8 weeks

More details

Currently out of stock, stocks to be replenished 2~4 weeks OR contact us for more details

S$ 170.00

Add to my wishlist

More info

Specifications Range Accuracy
RCD measurement Range setting Rated operating current Trip time 　
X 1/2 10mA/20mA/30mA/100mA/300mA/500mA 2000ms -10%~0%
X 1 10mA/20mA/30mA/100mA/300mA 1000ms 0%~10%
500mA 300ms 0%~10%
X 5 10mA/20mA/30mA 40ms 0%~10%
AUTO RAMP 10mA/20mA/30mA/100mA/300mA/500mA 300ms -10%~10%
Trip time accuracy ±(2%+2)
Operating voltage (Freq.) 195V~253V
Voltage measurement Voltage range 30~600V
Frequency 45Hz~65Hz
Resolution 1V
Accuracy ±(3%+3)
Features
Display count 999
Power off gear √
Low battery indication <7.2V
APO Auto power off fuction
LCD backlight √
Data hold √
Phase angle selection 0° and 180°
Connections check Simultaneously test the trip time and trip current
AUTO RAMP √
Disconnect buzzer √
Over-range display OL
Fused √
Mis-operation buzzer √
Power off buzzer √
Full icon display √
Compliance standard IEC 61010-1, IEC 61010-2-030, IEC 61010-2-033, IEC 61557-1:2007;IEC 61557-6:2007, EN61326-1, EN61326-2-2
Lead sequence check LCD
General Characterisitics
Power 1.5V battery (LR6) x 6
Display 71mm x 34mm
Product color Red and grey
Product net weight 400g
Product size 160mm x 100mm x 71mm
Standard accessories Test line, carrying bag, elastic strap
