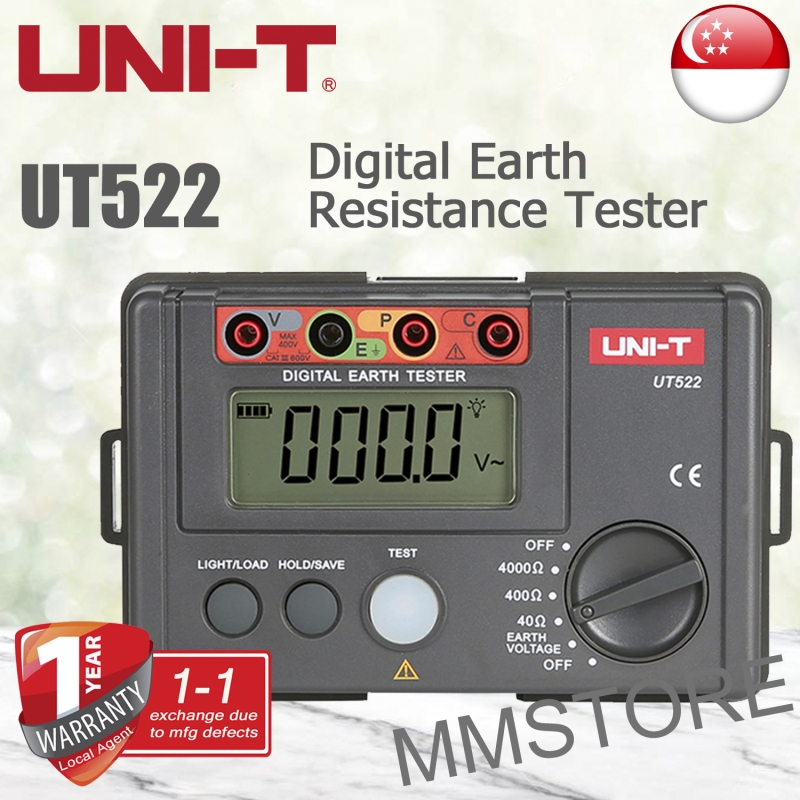

UNI-T UT522 Earth Resistance Tester

UT522

New

UT520 series earth resistance tester has the functions of backlight display, low battery display, data hold, data storage, auto power off and power saving. It can not only be used for accurate three-wire measurement but also simple two-wire measurement.It is applicable to measuring the earth resistance of all kinds of electrical power system, electrical equipment and anti-thunder equipment. It can also measure the earth voltage. It is applicable to testing operating earth systems of smelting, communication, manufacture, fossil oil, national defense, electricity, chemical industry and construction.

1. Over range indication, test lead connection alarm
2. TEST button for fast capture of measurement values
3. 20-group data storage/recall
4. Backlight
5. Data hold
6. Auto power off/battery check
7. Earth voltage measurement

Ex-stock subject to prior sales, otherwise lead time 6 to 8 weeks

More details

5 Items

By buying this product you can collect up to 26 loyalty points. Your cart will total 26 points that can be converted into a voucher of S$ 5.20.


S$ 260.00

More info

Specifications Range UT522
Earth resistance (Ω) 0~40Ω ±(2%+20)
0~400Ω ±(2%+3)
0~4000Ω ±(2%+3)
AC earth voltage (V) 0~400V ±(1%+6)
Frequency: 50Hz/60Hz
Features
Display count   4000
Manual range
Auto power off Around 10 minutes
Low battery indication
Data hold
Data storage   20
LCD backlight
Full icon display
Double insulation protection
Poor contact display  "...Ω"
Over-range display Display "OL"
Simple 2-wire testing
Precise 3-wire testing
General Characterisitics
Power 1.5V battery (LR6) x 6
Display 70.6mm x 34mm
Product color Red and grey
Product net weight 560g
Product size 160mm x 100mm x 70.5mm
Standard accessories Batteries, simple test leads with alligator clips, standard test leads with alligator clips, earth spike, gallus
