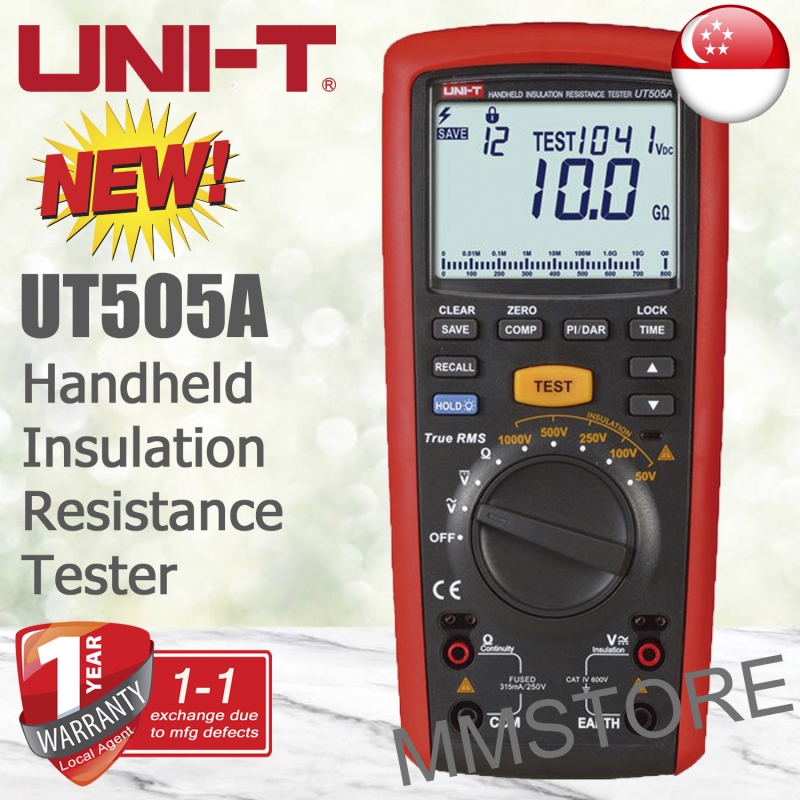

UNI-T UT505A Handheld Insulation Resistance Tester

Model UT505A

Condition New

UT505 series handheld true RMS insulation resistance testers combine features of a digital multimeter and insulation resistance tester. Aside from the typical multimeter functions, these meters can also measure insulation resistance, PI, DAR, and automatically calculate resistance ratio to determine the insulation status.

Applications:

UT505 can be used in insulation resistance testing of precision tools, including motors, cables, transformers, switches, electrical appliances, and insulated materials.

1. Auto power oﬀ

2. LCD backlight

3. High voltage output alarm

4. 99-group data storage

5. Data hold

6. Meets IEC 61557: 61557-1:2007; 61557-2:2007; 61557-4:2007

Ex-stock subject to prior sales, otherwise lead time 6 to 8 weeks

More details

2 Item Items

Hurry, Selling Fast!

Write a review

By buying this product you can collect up to 26 loyalty points. Your cart will total 26 points that can be converted into a voucher of S$ 5.20.

Send to a friend

Send to a friend

UNI-T UT505A Handheld Insulation Resistance Tester

UT505 series handheld true RMS insulation resistance testers combine features of a digital multimeter and insulation resistance tester. Aside from the typical multimeter functions, these meters can also measure insulation resistance, PI, DAR, and automatically calculate resistance ratio to determine the insulation status.

Applications:

UT505 can be used in insulation resistance testing of precision tools, including motors, cables, transformers, switches, electrical appliances, and insulated materials.

1. Auto power oﬀ
2. LCD backlight

3. High voltage output alarm

4. 99-group data storage

5. Data hold

6. Meets IEC 61557: 61557-1:2007; 61557-2:2007; 61557-4:2007

Ex-stock subject to prior sales, otherwise lead time 6 to 8 weeks

Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Print

S$ 269.00

Quantity:

Add to my wishlist

More info

Specifications		Range	UT505A
Insulation resistance (Ω)	50V	50V/100V/250V/500V/1000V	0%~10%
	50V	0.01MΩ~50MΩ	±(3%+5)
	100V	0.01MΩ~100MΩ	±(3%+5)
	250V	0.01MΩ~200MΩ	±(1.5%+5)
	500V	0.01MΩ~500MΩ	±(1.5%+5)
	1000V	0.1MΩ~2000MΩ	±(1.5%+5)
		2GΩ~9.9GΩ	±(10%+3)
		10GΩ~20GΩ	±(20%+10)
	Load current	50V (R=50kΩ) 1mA	0%~10%
		100V (R=100kΩ) 1mA	0%~10%
		250V (R=250kΩ) 1mA	0%~10%
		500V (R=500kΩ) 1mA	0%~10%
		1000V (R=1MΩ) 1mA	0%~10%
	Short circuit current		<2mA
Low resistance (Ω)	0.01Ω~20kΩ (about 5V/>200mA)		±(1.5%+3)
DC voltage (V)	0V~600V		±(2%+3)
AC voltage (V)	0V~600V		±(2%+3)
Features
Display count			6000
Auto range/True RMS			√
Step voltage	10% steps at 50%~120% of range		√
DAR	60s/15s and 60s/30s		√
PI/Timing measurement			√
Auto discharge			√
Analog bar graph			√
Continuity buzzer			√
Comparison measurement			√
Low battery indication			√
General Characterisitics
Power	1.5V battery (LR6) x 6
Display	78mm x 59mm
Product color	Red and grey
Product net weight	630g
Product size	103mm x 225mm x 59mm
Standard accessories	Batteries, test leads, test probes, alligator clips
Standard individual packing	Carrying bag, gift box, English manual
