UT661D
New
The UT661 series pipeline blockage detectors can quickly locate blockages clogging inside pipelines. They are able to detect pipes from a maximum distance of 50cm, the signal wire can be inserted into pipelines up to 25/35m for UT661C/D respectively. UT661 series are easily operable, and can be used to detect steel, iron, and pvc pipes.
Currently out of stock, stocks to be replenished 2~4 weeks OR contact us for more details
Hurry, Selling Fast!
Availability date:

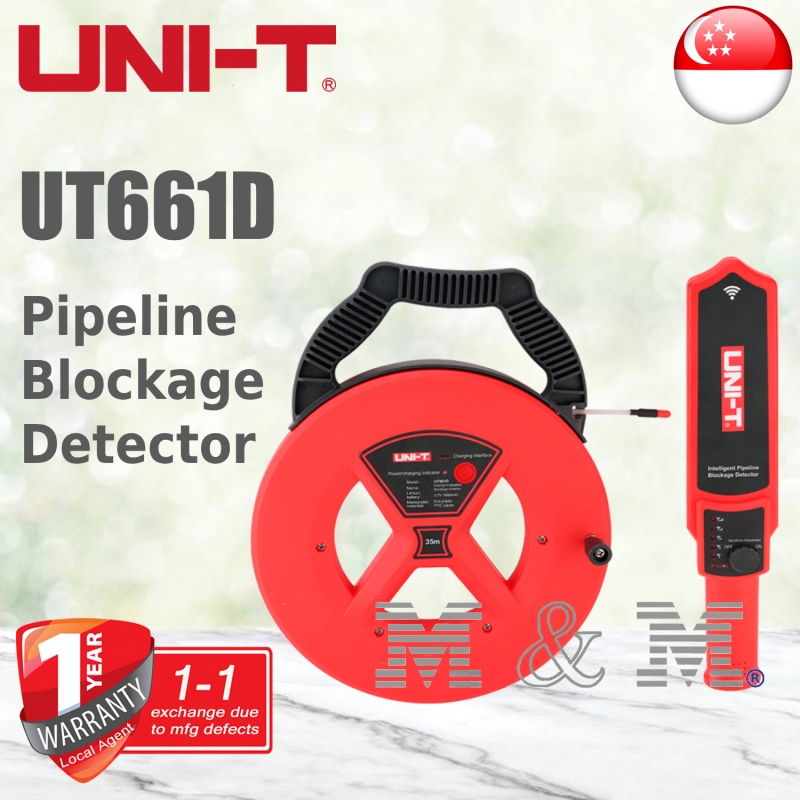

UNI-T UT661D Pipeline Blockage Detectors
The UT661 series pipeline blockage detectors can quickly locate blockages clogging inside pipelines. They are able to detect pipes from a maximum distance of 50cm, the signal wire can be inserted into pipelines up to 25/35m for UT661C/D respectively. UT661 series are easily operable, and can be used to detect steel, iron, and pvc pipes.
Recipient :
* Required fields
or Cancel
| Specifications | UT661D |
| Transmitter | Yes |
| Signal wire | 35m |
| Receiver | Yes |
| Maximum detection distance(depth) | 50cm |
| Transmitter current | Shutdown current: <2uA, working current: 230~310mA |
| Receiver current | Shutdown current: <2uA, standby current: <40mA Maximum working current: 150~450mA (Distance 1cm) |
| Charging current | 450~550mA |
| Test the output sound at a distance of 1cm | >93dB |
| Test the output sound at a distance of 0.5m | >75dB |
| Battery duration | 10 hours |
| Operting temperature and humidity | -20°C~60°C, 10~80%RH |
| Measurable pipe material | Plastic pipes, metal pipes |
| Buzzing prompt | Yes |
| Flash prompt | Yes |
| Low battery indication | Yes |
| Waterproof grade | Probe waterproof IP67 |
| General Characteristics | |
| Transmitter battery | Built-in lithium battery (3.7V 1800mAh) |
| Receiver battery | Built-in lithium battery (3.7V 1800mAh) |
| Color | Red and grey |
| Weight | Transmitter: 1.42KG Receiver: 0.26KG |
| External dimension | Tansmitter: 38x30x42mm Receiver: 40x38x80mm |
| Standard accessories | Charging cable, Probe kit |
