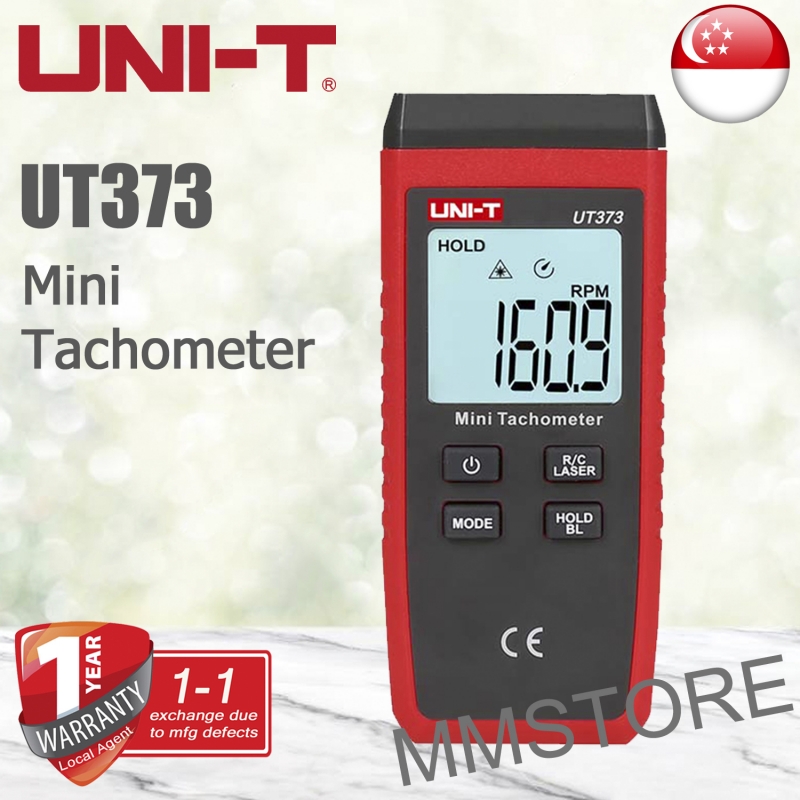

UNI-T UT373 Digital Mini Tachometer

UT373

New

UT373 is a reliable digital non-contact tachometer used to measure rotation speed of motors and other machines.This device is able to display results in RPM or revolution count. UT373 is able to safely measure rotational objects through a non-intrusive method.

1. Auto range
2. Up to 99999 display; overload diaplay, "OL"
3. RPM measurement and revolution count
4. Max/Min, data hold
5. Singal trigger/laser-on indication
6. Low battery/auto power off indication
7. LCD backlight

Ex-stock subject to prior sales, otherwise lead time 6 to 8 weeks

More details

10 Items

By buying this product you can collect up to 2 loyalty points. Your cart will total 2 points that can be converted into a voucher of S$ 0.40.


S$ 29.00

More info

Specifications Range Resolution Accuracy
RPM measurement 10.0~9999.9RPM 0.1 ±(0.04%+2)
10000~99999RPM 1
Counting measurement 0~99999 counts 1 ±1
Features
Auto range
Auto power off
Low battery indication
Laser-on indication
Data hold
MAX/MIN
Rotating speed/count function switching
Overload indication
LCD backlight
Refresh rate 1s to 7s (>120rpm for 1s)
Sensor type Photodiode and laser tube
Target distance 50mm~200mm
Measuring angle ±30° from perpendicular
Drop test 1m
General Characterisitics
Power 1.5V battery (R03) x 3
Display 5-digit segment code; 99999 max display
Product color Red and grey
Product net weight 85g (excluding battery)
Product size 183.8mm x 56mm x 34mm
Standard accessories Batteries, reflective tape
