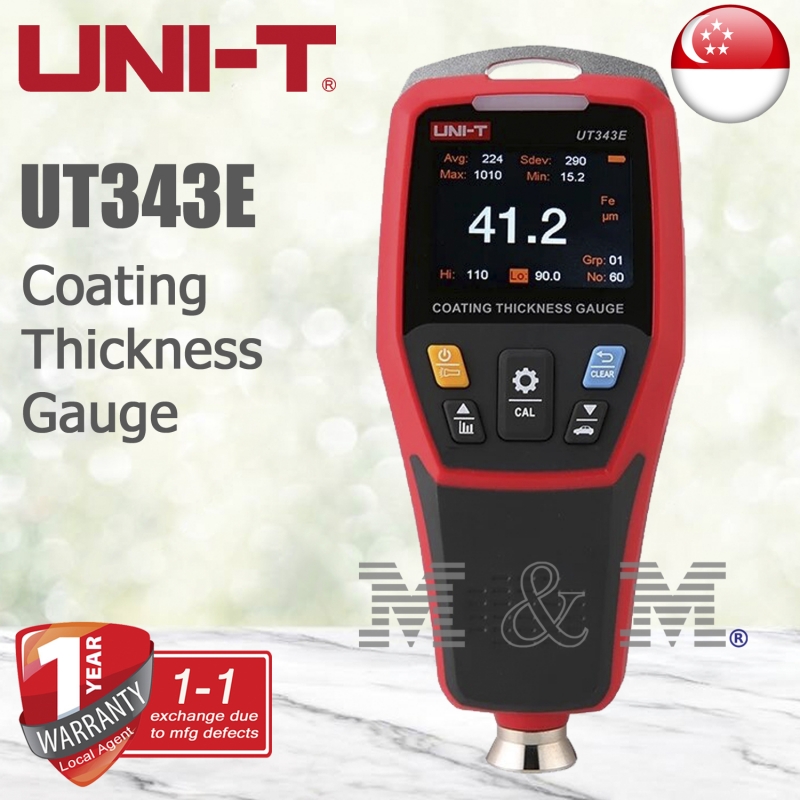

UNI-T UT343E Digital Thickness Gauge

UT343E

New

UT343E coating thickness gauge can measure coating thickness on ferrous and non-ferrous materials. The measuring range is up to 2000µm, and the data can be analyzed through Bluetooth APP and PC software of mobile phones, which can be widely used in manufacturing, metal processing, chemical industry, commodity inspection and other detection areas.

Features of UT343E Coating Thickness Gauge

Certificates: CE, UKCA

● Bluetooth APP
● Conductive coating measurement (like chromium, zinc, tin)
● Voice broadcast
● Durable probe
● Automobile mode
● Multiple measurement modes
● PC software analysis

Ex-stock subject to prior sales, otherwise lead time 6 to 8 weeks

More details

Currently out of stock, stocks to be replenished 2~4 weeks OR contact us for more details

S$ 257.00

Add to my wishlist

More info

Specification Range Thickness Resolution Accuracy
Certificates CE/UKCA
Ferrous and non-ferrous substrates measurement (FE and NFE) 0~2000μm 0~99.9μm 0.1μm ±(2%H+2μm)
100~2000μm 1μm
0~78.7mil 0~4.99mil 0.01mil ±(2%H+0.08mil)
5.0~78.7mil 0.1mil
Bluetooth and App function √
Probe measuring force 0.3~1.5N
Display 2”color TFT screen
Auto rotatable screen √
Unit conversion μm/mil
LED /Audio alarm √
Limit setting 0~2000μm
Measurement method Single/continuous
Statistical measurement Max/Min/Avg
Matrix identification modes Auto/manual
Voice broadcast √
Flashlight √
USB communication Upper computer communication
Data storage 3300 data
LCD brightness control √
Auto power off 5 minutes
Low battery indication √
Power supply 3.7V 1300mAh Lithium battery
General Characteristics
Power 3.7V 1300mAh Lithium battery
LCD Size 2 inch
Product color Red and Gray
Product net weight 150g
Product size 152*65*35mm
Standard accessories USB cable, Hand strap, Sensor protective cover, Ferrous matrix, Non-ferrous matrix, Stand coating thickness sheets（6pcs）
