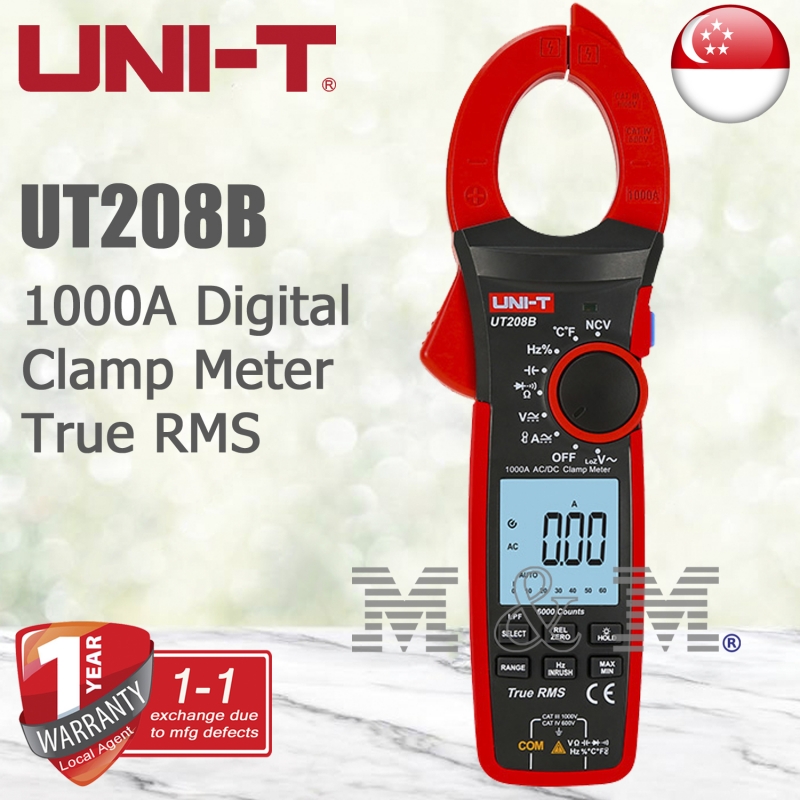

UNI-T UT208B True RMS Digital Clamp Meter

UT208B

New

UT200 series are 6000-count digital clamp meters with auto range, large LCD, true RMS, autoscale memory, and NCV functions. They conform to CAT III 1000V/CAT IV 600V safety rating andcertified by CE/ETL. The UT206B, UT207B, and UT208B come with LoZ mode for eliminating ‘ghost ’voltage, LPF ACV function for measuring INV and VFD voltage, and inrush current modefor capturing transient current.

1. Flashlight button: Short press thisbutton to turn on/off the flashlight.
2. Flexible current probe (optional) to extendthe AC current measurement range to3000A
3. Inrush current capture
4. NCV Multi-Segment Display and audio/visual alarm
5. True RMS/Auto backlight
6. NCV/Function retention

More details

Currently out of stock, stocks to be replenished 2~4 weeks OR contact us for more details

By buying this product you can collect up to 15 loyalty points. Your cart will total 15 points that can be converted into a voucher of S$ 3.00.


S$ 155.00

More info

Specifications Range UT208B
AC current (A) 1000A ±(2%+5)
DC current (A) 1000A ±(2%+5)
AC current frequency response 40Hz~400Hz
Inrush current (A) 1000A ±(10%+10)
AC voltage (V) 1000V ±(1.2%+3)
DC voltage (V) 1000V ±(0.5%+5)
Low pas filter (LPF ACV) 1000V ±(2%+5)
AC voltage frequency response 40Hz~400Hz
LoZ ACV 1000V ±(2%+5)
Resistance (Ω) 60MΩ ±(1%+2)
Capacitance (F) 60mF ±(4%+5)
Temperature  -40℃~1000℃ ±(1%+2)
 -40℉~1832℉ ±(1%+4)
Low voltage frequency (Hz) 10Hz~1MHz ±(0.1%+3)
Duty cycle (%) 10%~90% ±(2.6%+7)
Analog bar 31
Flexible current probe (optional) Extends up to 3000A
Zero mode
Display count 6000
Jaw opening 42mm
General Characteristics
Power 1.5V battery (R03) x 3
Display 43mm x 45mm
Product net weight UT205E/UT206B: 465g; UT207B/UT208B: 420g
Product size 272mm x 81mm x 43.5mm
Standard accessories Test leads, batteries, point contact temperature probe (UT206B/UT208B), English manual

Reviews

Write a review

UNI-T UT208B True RMS Digital Clamp Meter

UNI-T UT208B True RMS Digital Clamp Meter

UT200 series are 6000-count digital clamp meters with auto range, large LCD, true RMS, autoscale memory, and NCV functions. They conform to CAT III 1000V/CAT IV 600V safety rating andcertified by CE/ETL. The UT206B, UT207B, and UT208B come with LoZ mode for eliminating ‘ghost ’voltage, LPF ACV function for measuring INV and VFD voltage, and inrush current modefor capturing transient current.

1. Flashlight button: Short press thisbutton to turn on/off the flashlight.
2. Flexible current probe (optional) to extendthe AC current measurement range to3000A
3. Inrush current capture
4. NCV Multi-Segment Display and audio/visual alarm
5. True RMS/Auto backlight
6. NCV/Function retention
