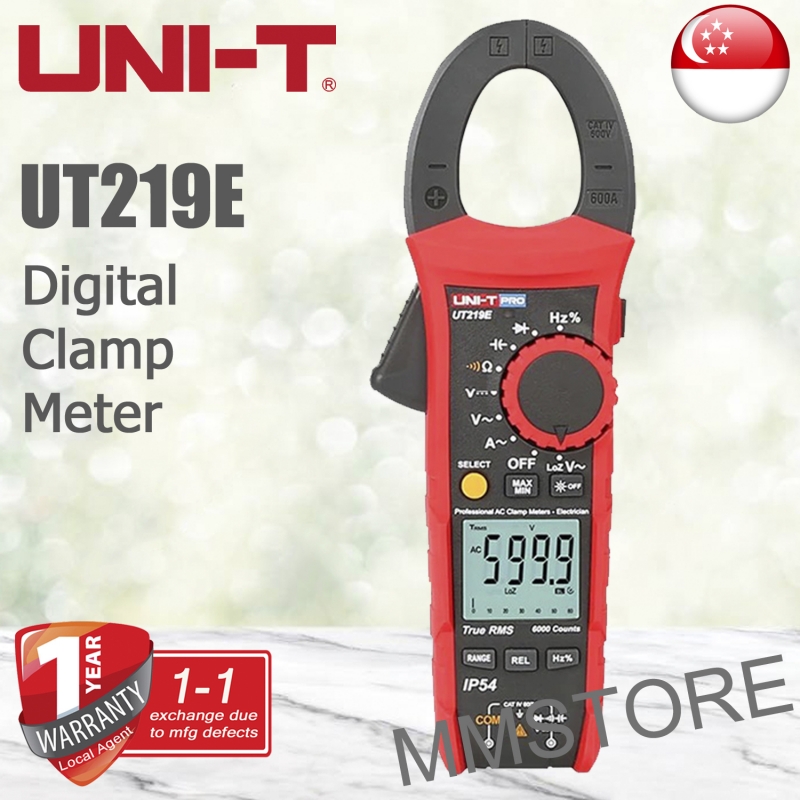

UNI-T UT219E Digital Clamp Meter

UT219E

New

UT219 series is 600A true RMS professional clamp meter with CAT IV 600V rating. It is industrially designed with IP54 rating and able to withstand 2 meters drop test for measurement in harsh environments. This series is suitable for professional electricians, HVAC/R and motor service technicians.

1. LoZ input for ghost voltage measurement
2. Flashlight and auto backlight

Ex-stock subject to prior sales, otherwise lead time 6 to 8 weeks

More details

Currently out of stock, stocks to be replenished 2~4 weeks OR contact us for more details

S$ 157.00

More info

Specifications Range UT219E
AC current (A) 600A ±(1.8%+6)
AC voltage (V) 600V ±(1%+6)
DC voltage (V) 600V ±(0.6%+3)
LoZ ACV 600V ±(2.5%+6)
Resistance (Ω) 60MΩ ±(1%+3)
Capacitance (F)  60mF ±(4%+7)
Frequency (Hz) 10Hz~10MHz ±(0.1%+6)
Duty cycle 0.1%~99.9% ±(2.6%+7)
Features
Display count   6000
Auto/Manual range
Jaw opening   33mm
True RMS
AC current frequency response   40Hz~400Hz
AC voltage frequency response   40Hz~400Hz
Diode test   3V
Measurement sampling rate   3 times/s
Analog bar sampling rate   10 times/s
Analog bar    31 segment
Display interface (LCD)   Single
Auto power off/MAX/MIN
Low battery indication
Data hold (H)/Relative mode (REL)
ZERO mode
Function selection (SELECT)
Auto backlight/2m drop test
IP rating   IP54
Input impedance ≥10MΩ
General Characterisitics
Power 1.5V battery (R03) x 3
Display 35mm x 31mm
Product color Red and grey
Product net weight 310g
Product size 234.6mm x 82mm x 47mm
Standard accessories Test leads, batteries, carrying bag, PC software CD
