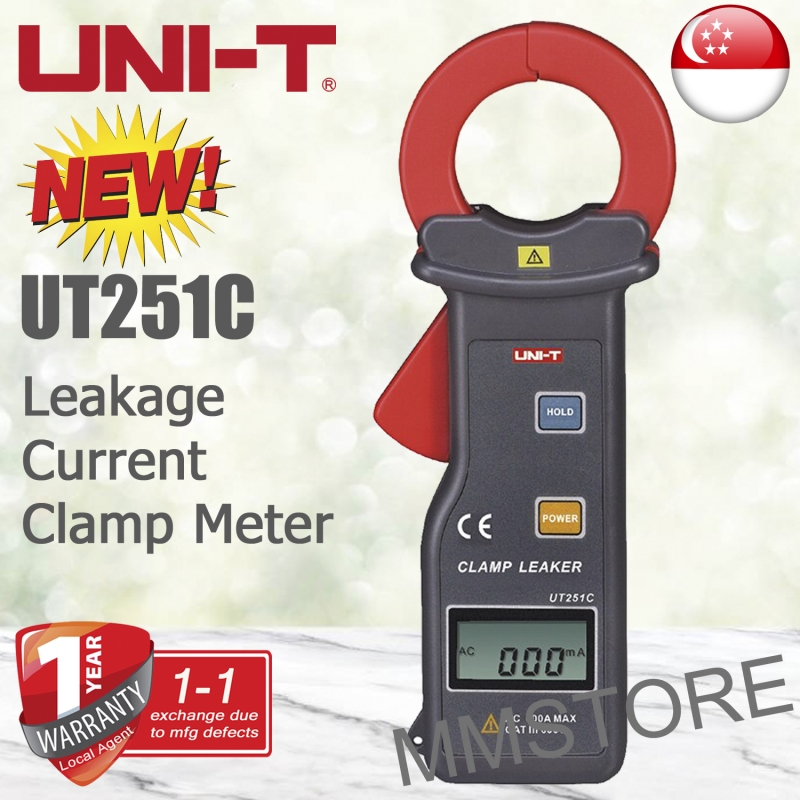

UNI-T UT251C High Sensitivity Leakage Current Clamp Meter

UT251C

New

UT251 series high-accuracy high sensitivity leakage current clamp meters are designed for testing AC leakage current. These high resolution meters are great for applications such as checking leakage current for motor, home appliances and other electrical equipment up to 600A.

Applications:
Checking leakage current for motor, home appliances and other electrical equipment up to 600A

1. 4-digit LCD digital display, 10000 display count
2. Auto range, 2/s sampling rate
3. Peaks hold
4. Store 99 sets of data
5. RS-232 interface
6. Data hold
7. Auto power off
8. Overload indication, low battery indication

More details

Currently out of stock, stocks to be replenished 2~4 weeks OR contact us for more details

By buying this product you can collect up to 19 loyalty points. Your cart will total 19 points that can be converted into a voucher of S$ 3.80.


S$ 195.00

More info

Specifications Range UT251C
Leakage current (A) 0.001mA~60A ±(1.5%+5)
60A~199.9A ±(2%+5)
200A~300A ±(3%+5)
300A~600A ±(4%+5)
Voltage (Freq.) 0V~600V (50Hz/60Hz)
Resolution 1mA
Features
Display 4 digits LCD
Clamp size    35mm x 40mm
Auto range
RS-232
Data storage    99
Peak/Data hold
Overload protection  OL
Auto power off  5 minutes
Low battery indication    ≤7.2V
Over-range display  OL
Test mode  Clamp CT, integral mode
General Characterisitics
Power 9V battery (6F22)
Display 32mm x 15mm
Product color Red and grey
Product net weight 120g
Product size 175mm x 70mm x 38mm
Standard accessories Battery, RS-232 interface cable, PC software CD
