New

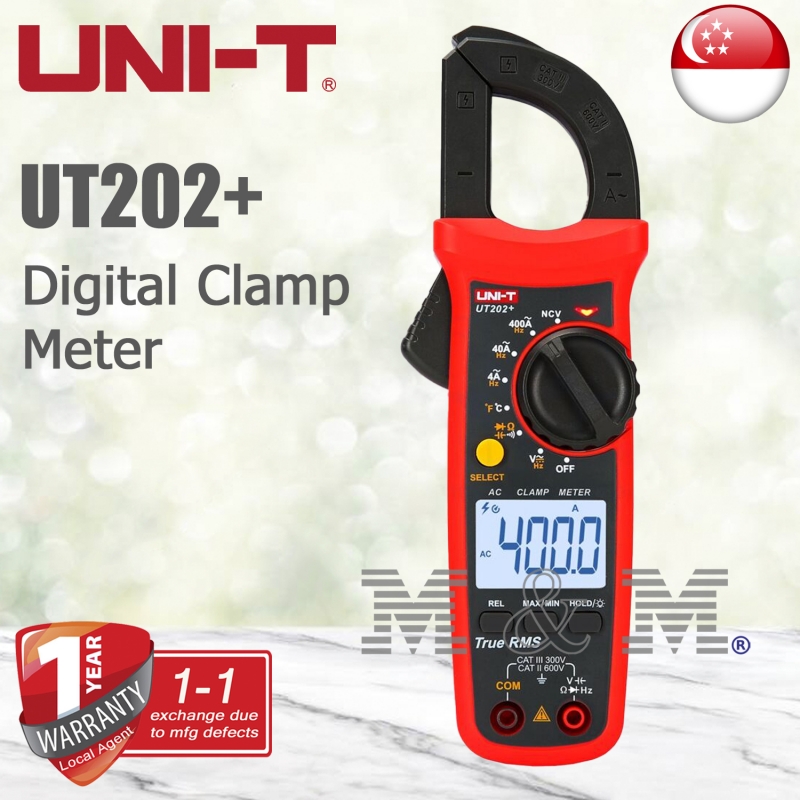

UNI-T UT202+ Digital Clamp Meter

Model UT202+

Condition New

UT200+ series handheld automatic range true RMS clamp meter, designed according to safety standard EN61010-2010 CAT II600V/CAT III 300V grade, with full-function gear anti-burn protection, can meet high reliability and high safety operation requirements.

Large screen LCD display, fast ADC / analog to digital converter
Full-featured false detection protection, over voltage, over current alarm prompt
True RMS; voltage measurement 600V
With high voltage frequency measurement
AC current measurement function

Ex-stock subject to prior sales, otherwise lead time 6 to 8 weeks

More details

Write a review

Send to a friend
Send to a friend
UNI-T UT202+ Digital Clamp Meter

UT200+ series handheld automatic range true RMS clamp meter, designed according to safety standard EN61010-2010 CAT II600V/CAT III 300V grade, with full-function gear anti-burn protection, can meet high reliability and high safety operation requirements.

Large screen LCD display, fast ADC / analog to digital converter

Full-featured false detection protection, over voltage, over current alarm prompt

True RMS; voltage measurement 600V

With high voltage frequency measurement

AC current measurement function

Ex-stock subject to prior sales, otherwise lead time 6 to 8 weeks
Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Print

S$ 38.00

Quantity:

Add to my wishlist

More info

Specifications	Range	UT202+
AC current (A)	400A	±(2%+10)
AC current (A)	600A
AC current frequency (Hz)	50Hz~100Hz	±(1%+5)
DC current (A)	400A
DC current (A)	600A
AC voltage (V)	600V	±(0.8%+5)
AC voltage frequency(Hz)	10Hz~10kHz	±(1%+5)
AC voltage frequency(Hz)	10Hz~60kHz
DC voltage (A)	600V	±(0.5%+2)
Resistance (Ω)	40MΩ	±(0.8%+2)
Resistance (Ω)	60MΩ
Capacitance (F)	4mF	±(4%+5)
	40mF
	60mF
Temperature (℃)	-40℃~1000℃	±(1.5%+5)
Frequency (Hz)	10Hz~10MHz
Features
Display count		4000
Auto range		√
Jaw opening		28mm
True RMS		√
NCV		√
Live wire test
Continuity test		√
Diode		√
MAX/MIN		√
Relative mode		√
Zero mode
Data hold		√
Low battery indication		√
Auto power off		√
General Characteristics
Power	1.5V battery (R03) x 2
Display	37mm x 25mm
Product color	Red and grey
Product net weight	UT201+/UT202+/UT202A+
Product size	215mm x 63mm x 36mm
Standard accessories	Batteries, test leads, Themocouple (UT202+/UT204+)
