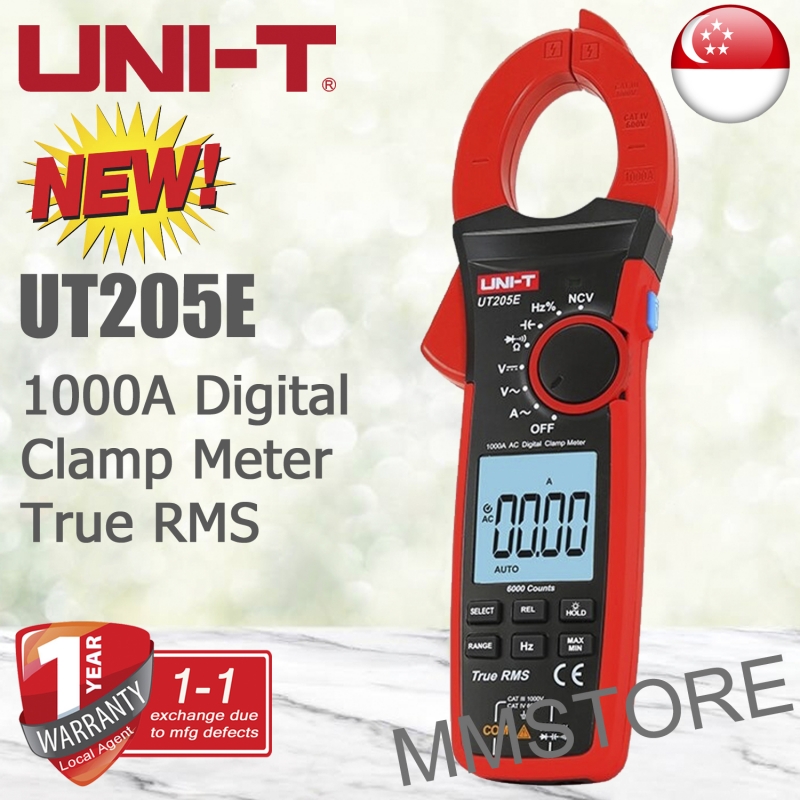

UNI-T UT205E True RMS Digital Clamp Meter

UT205E

New

UT200 series are 6000-count digital clamp meters with auto range, large LCD, true RMS, autoscale memory, and NCV functions. They conform to CAT III 1000V/CAT IV 600V safety rating andcertified by CE/ETL.

1. Flashlight button: Short press thisbutton to turn on/off the flashlight.
2. NCV Multi-Segment Display and audio/visual alarm
3. True RMS/Auto backlight
4. NCV/Function retention

More details

10 Items

By buying this product you can collect up to 7 loyalty points. Your cart will total 7 points that can be converted into a voucher of S$ 1.40.


S$ 75.00

Add to my wishlist

More info

Specifications Range UT205E
AC current (A) 1000A ±(2%+5)
AC current frequency response 　 50Hz~60Hz
AC voltage (V) 6V ±(1.2%+3)
60V/600V/1000V ±(1%+8)
DC voltage (V) 600mV ±(0.8%+3)
6V/60V ±(0.5%+5)
600V ±(0.5%+5)
1000V ±(0.5%+5)
AC voltage frequency response 　 40Hz~400Hz
Resistance (Ω) 600Ω ±(1%+3)
6KΩ/60KΩ/600KΩ ±(1%+2)
6MΩ/60MΩ ±(2%+8)
Capacitance (F) 60nF ±(4%+25)
600nF/6μF/60μF/600μF ±(4%+5)
6mF/60mF ±(10%+9)
Low voltage frequency (Hz) 10Hz~1MHz ±(0.1%+3)
Duty cycle (%) 10%~90% ±(2.6%+7)
Features
Display count 　 6000
Jaw opening 　 42mm
Current frequency 　 50Hz~60Hz
High voltage frequency 　 40Hz~400Hz
Auto power off 　 √
Continuity test 　 √
Auto/Manual range 　 √
Low battery indication 　 √
Diode test 　 √
Relative mode/Data hold 　 √
MAX/MIN 　 √
Function selection 　 √
Flashlight 　 √
Wake-up function 　 √
Auto power off current: ＜50μA 　 √
Input impedance (ACV/DCV) ≥10MΩ √
General Characteristics
Power 1.5V battery (R03) x 3
Display 43mm x 45mm
Product color Red and grey
Product net weight 465g
Product size 272mm x 81mm x 43.5mm
Standard accessories Test leads, batteries, point contact temperature probe
