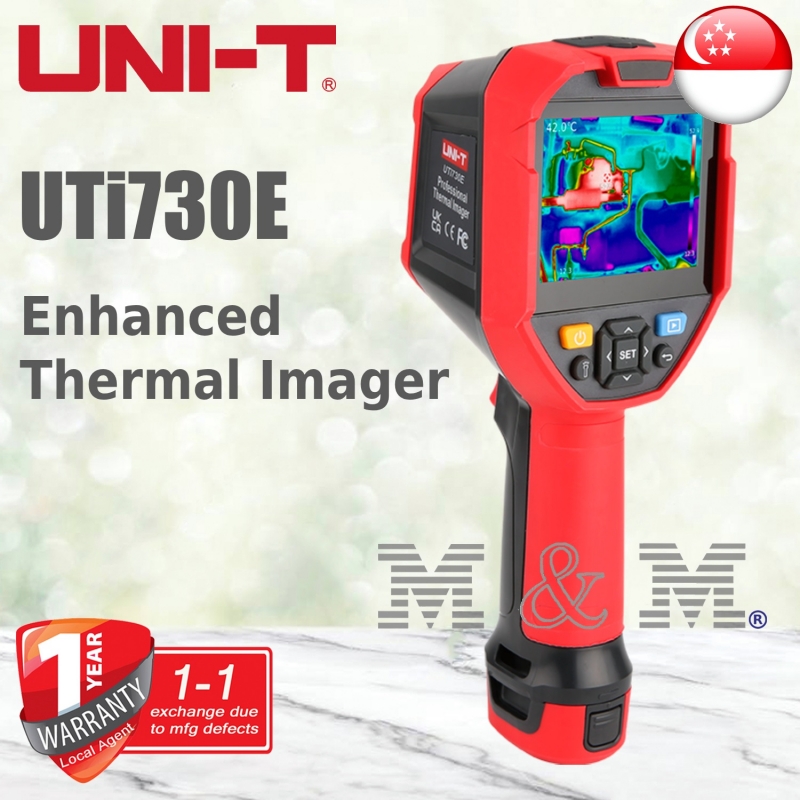

UNI-T UTi730E Enhanced Infrared Thermal Imager

UTi730E

New

UTi730E is an advanced thermal camera with Wi-Fi capability. Its large 3.5” IPS display screen can clearly display 320×240 thermal resolution 2MP visual camera, or a blended image of both. UTi730E’s 5200mAh detachable battery pack is also convenient for easy and quick battery change, allowing continuously work for long periods of time.

Features :

  • 3.5”IPS display screen (640×480 Pixels)
  • IR resolution: 320×240
  • Temperature measurement range: -40℃to 400℃  / -40℉ to 752 ℉
  • Auto alarm for high/low temperature
  • Auto tracking for hot spot/cold spot
  • On screen analyzer :5 Points/1 Line/3 Rectangles/3 Circles
  • Image capture
  • Digital camera resolution: 2MP
  • Digital zoom: 2x, 4x
  • Image modes: Thermal,Visual image,Fusion,PIP

Ex-stock subject to prior sales, otherwise lead time 6 to 8 weeks

More details

1 Item

Hurry, Selling Fast!

By buying this product you can collect up to 113 loyalty points. Your cart will total 113 points that can be converted into a voucher of S$ 22.60.


S$ 1,135.00

More info

Technical Data
IR resolution (Pixels) 320×240
Display 3.5‘’IPS (640×480)
Field of view(FOV) 56°×42°
Thermal sensitivity(NETD) ≤65mK
Spatial resolution(IFOV) 3mrad
Frame rate ≤9Hz
Spectral range 8~14µm
Focus Focus Free
Temperature measurement range  -40℃~400℃
Accuracy ±2℃ or ±2% whichever is greater
Emissivity 0.01~1.00 adjustable (0.95 default)
Functions
Color palettes 7
(White hot, Black hot, Red hot, Ironbow, Rainbow HC, Rainbow, Lava)
Image modes Thermal,Visual image,Fusion,PIP
On screen analyzer 5 Points/1 Line/3 Rectangles/3 Circles
Digital camera resolution 2MP
Digital zoom 2x, 4x
Hi/Lo temperature alarm Icon,LED flashlight
Isotherm Auto/Ratio/Below/Above/Section/Manual
Software analysis PC+APP
Wi-Fi
General Characteristics
Battery Detachable Li-ion battery pack(3.7V 5200mAh)
Battery operation time  ≥ 3 hours (with Wi-Fi off)
USB Type-C
IP rating IP54
Drop proof 2m
Storage 16G Micro SD card
Image/Video storage format JPEG
Certificates CE,UKCA,FCC,RoHS
Product net weight 654g
Product size 260mm×97mm×99mm
Packing Details
Standard accessories Micro SD card, Type-C USB cable, English manual, Li-ion battery pack
