New

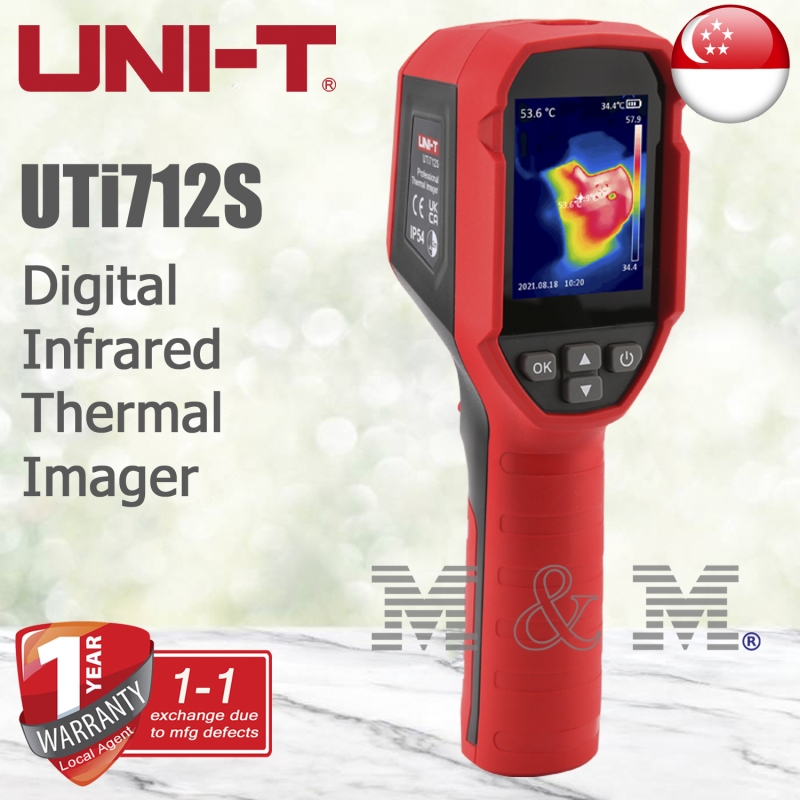

UNI-T UTi712S Infrared Thermal Imager

Model UTi712S

Condition New

UTi712S is a cost-effective and highly recommendable thermal camera with a quality build. Some special features include: temperature compensation (allows more accurate readings under different temperature environment), laser pointer, longer battery operation time (more than 8 hours). This rugged thermal camera has IP54 protection and can withstand 2 meters drop. UTi712S also supports 5 languages: English, German, French, Russian, and Spanish.

Ex-stock subject to prior sales, otherwise lead time 6 to 8 weeks

More details

5 Item Items

Write a review

By buying this product you can collect up to 38 loyalty points. Your cart will total 38 points that can be converted into a voucher of S$ 7.60.

Send to a friend

Send to a friend

UNI-T UTi712S Infrared Thermal Imager

UTi712S is a cost-effective and highly recommendable thermal camera with a quality build. Some special features include: temperature compensation (allows more accurate readings under different temperature environment), laser pointer, longer battery operation time (more than 8 hours). This rugged thermal camera has IP54 protection and can withstand 2 meters drop. UTi712S also supports 5 languages: English, German, French, Russian, and Spanish.

Ex-stock subject to prior sales, otherwise lead time 6 to 8 weeks

Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Print

S$ 380.00

Quantity:

Add to my wishlist

More info

Technical Data
IR resolution (Pixels)	120×90
Display	2.4” TFT LCD (320×240)
Field of view(FOV)	50°×38°
Thermal sensitivity(NETD)	≤60mK
Spatial resolution(IFOV)	7.3mrad
Frame rate	≤25Hz
Focus	Focus Free
Temperature measurement range	-20℃~400℃
Accuracy	±2℃ or ±2% whichever is greater
Emissivity	0.01~1.00 adjustable (0.95 default)
Functions
Color palettes	6 (White hot, Black hot, Ironbow, Rainbow HC , Rainbow, Lava)
Image modes	Thermal
Hi/Lo temperature alarm	Icon,LED flashlight,Buzzer
PC software analysis	√
Laser pointer	√
General Characteristics
Battery	Fixed Li-ion battery (3.7V 2600mAh)
Battery operation time	≥8 hours
USB	Type-C
IP rating	IP54
Drop proof	2m
Storage	16GB Micro SD card
Image/Video storage format	BMP
Certificates	CE,UKCA,FCC,RoHS
Product net weight	310g
Product size	197mm×72mm×60mm
