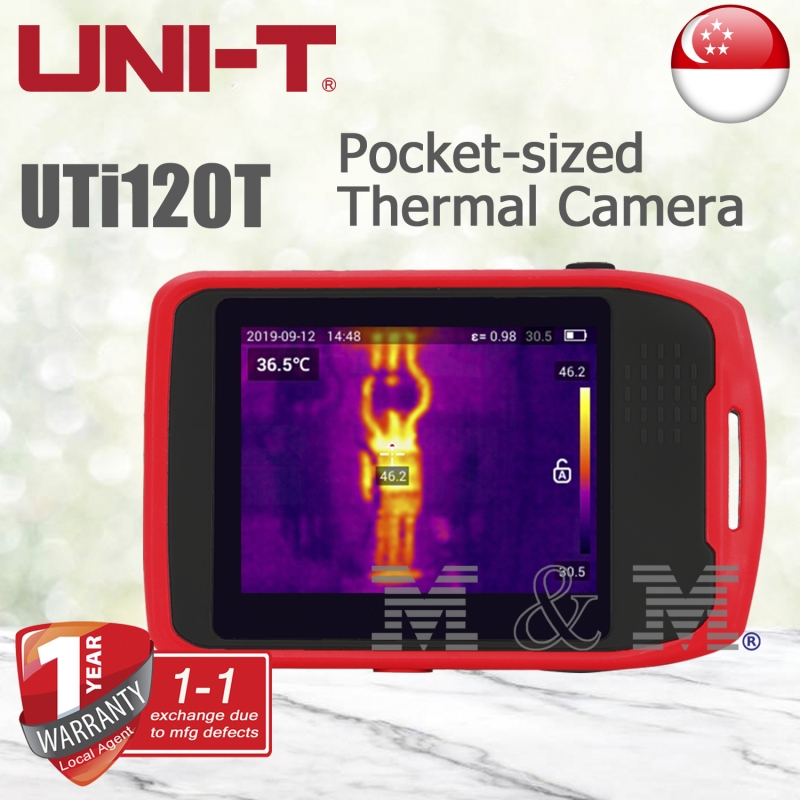

UNI-T UTi120T Pocket-sized Thermal Camera

UTi120T

New

UTi120T is a pocket-sized and compact thermal camera, it can be easily put into pocket, which is very portable for users. Its 3.5’’ large LCD touchable display screen is convenient for users to operate easily. It can automatically track the objective’s temperature from -20℃~400℃. It also supports Wi-Fi connection through UNI-T Mobile App. With UTi120T thermal camera in pocket, users will be ready anytime to diagnose electrical, mechanical, building problems and other potential issues.

Ex-stock subject to prior sales, otherwise lead time 6 to 8 weeks

More details

1 Item

Hurry, Selling Fast!

By buying this product you can collect up to 75 loyalty points. Your cart will total 75 points that can be converted into a voucher of S$ 15.00.


S$ 750.00

More info

Technical Data
IR resolution (Pixels) 120×90
Display 3.5” TFT Touch (320×240)
Field of view(FOV) 50°×38°
Thermal sensitivity(NETD) ≤60mK
Spatial resolution(IFOV) 7.6mrad
Frame rate ≤25Hz
Focus Focus Free
Temperature measurement range  -20℃~400℃
Accuracy ±2℃ or ±2%
whichever is greater
Emissivity 0.01~1.00 adjustable
(0.95 default)
Functions
Color palettes 6
(White hot, Black hot, Ironbow, Hot iron, Arctic,Medical)
Image modes Thermal,Visual image,Fusion,PIP
On screen analyzer 1 Point /1 Rectangle
Digital camera resolution 640×480
Digital zoom 1.0~8× continuous
Hi/Lo temperature alarm Icon,LED flashlight
PC software analysis
Wi-Fi
General Characteristics
Battery Fixed Li-ion battery (3.7V 5000mAh)
Battery operation time  ≥2 hours (with Wi-Fi off)
USB Type-C
IP rating IP54
Drop proof 1m
Storage 4GB Internal
Image/Video storage format JPEG
Certificates CE,FCC,RoHS
Product net weight 212g
Product size 205mm×124mm×65mm
