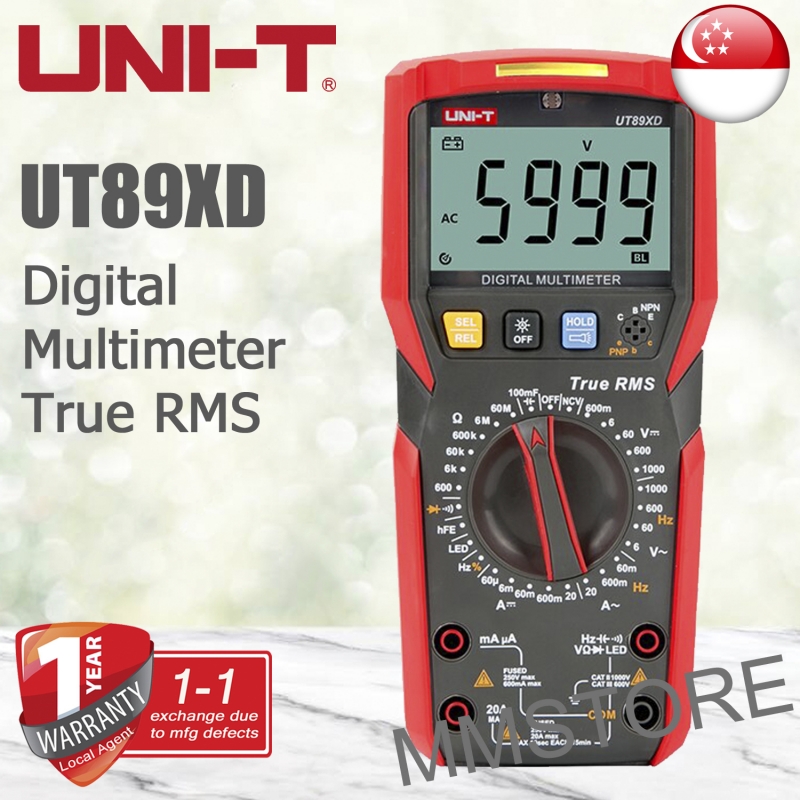

Uni-T UT89XD True RMS Digital Multimeter

UT89XD

New

UT89XD is a reliable hand-held 3 5/6 bit digital multimeter with true RMS sine wave measurement. It can measure Max. 1000V DC/AC voltage, Max. 20A DC/AC current, resistance, capacitance, frequency, diode, hFE, continuity and NCV, quickly distinguishing between neutral and live wires accurately. UT89X can measure temperature and detect neutral and live wires with a test lead. UT89XD can perform LED test. Equipped with audible and visible alarm, flashlight and auto backlight functions, this series can be used in dark environment. It attracts users with its bi-color durable case, modern exterior and multiple functions.

1. 1000V AC/DC; 20A AC/DC
2. True RMS, 6000 count
3. Dual range NCV test which quickly identifies neutral and live wires through light intensity
4. LED measurement
5. Audible/visual alarm
6. Capacitor charging indicator
7. Ergonomic design
8. Double injection molding
9. 1m drop proof
10. Flashlight; Auto backlight

More details

100 Items

By buying this product you can collect up to 4 loyalty points. Your cart will total 4 points that can be converted into a voucher of S$ 0.80.


S$ 42.00

More info

Specifications Range UT89XD
DC voltage (V) 600mV/6V/60V/600V/1000V ±(0.5%+2)
AC voltage (V) 6V/60V/600V/1000V ±(0.8%+5)
DC current (A) 60μA/6mA/60mA/600mA/20A ±(0.8%+8)
AC current (A) 60mA/600mA/20A ±(1%+12)
Resistance (Ω) 600Ω/6kΩ/60kΩ/
600kΩ/6MΩ/60MΩ
±(0.8%+3)
Capacitance (F) 6nF/60nF/600nF/6μF/60μF/600μF/6mF/60mF/100mF ±(2.5%+20)
Frequency (Hz) 9.999Hz/9.999MHz ±(0.1%+4)
Duty cycle 0.1%~99.9% ±(2%+5)
Features
Display count   6000
Sampling rate   3 times/s
True RMS
AC voltage frequency response   45~1000Hz
AC current frequency response   45~1000Hz
LED test
Audible/visual alarm V/A/Cap/Diode/hFE/NCV/Live (UT89X)/LED (UT89XD)
Diode/Continuity test
Transistor hFE
Dual range NCV test
Auto power off
Low battery indication
Data hold
Function selection SELECT
Flashlight
Auto backlight
General Characteristics
Power 1.5V battery (R03) x 4
Display 61mm x 36mm
Product color Red and grey
Product net weight 345g
Product size 189mm x 89mm x 53mm
Standard accessories Batteries, test lead
