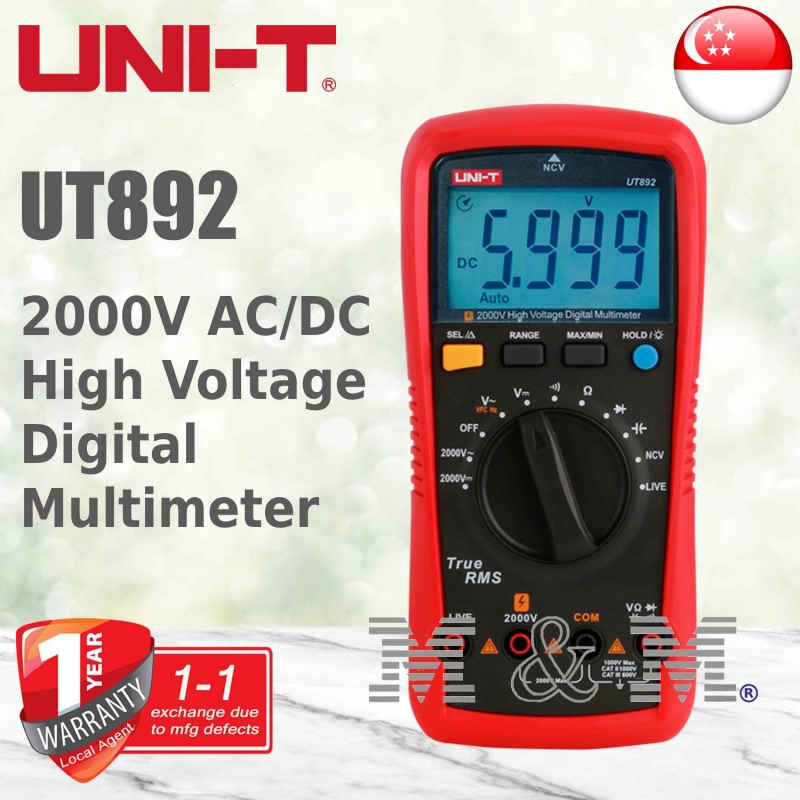

Uni-T UT892 2000V AC/DC High Voltage Digital Multimeter

Model UT892

Condition New

UT892 High Voltage Digital Multimeter provides AC/DC voltage measurement up to 2000V with full range overload protection. The specially designed 2000V input terminal and the indication for test leads allow users to take electrical measurements safely and efficiently.

This meter features VFC mode for accurate measurements on variable frequency motor drives and noisy devices. The built-in NCV helps users detect the presence of live voltage without contacting any metal conductor, and the LIVE test can identify the live wire with a single test lead. UT892 has a removable rubber holster that can also hold test probes for one-handed operation.

More details

Write a review

Send to a friend

Send to a friend

Uni-T UT892 2000V AC/DC High Voltage Digital Multimeter

UT892 High Voltage Digital Multimeter provides AC/DC voltage measurement up to 2000V with full range overload protection. The specially designed 2000V input terminal and the indication for test leads allow users to take electrical measurements safely and efficiently.

This meter features VFC mode for accurate measurements on variable frequency motor drives and noisy devices. The built-in NCV helps users detect the presence of live voltage without contacting any metal conductor, and the LIVE test can identify the live wire with a single test lead. UT892 has a removable rubber holster that can also hold test probes for one-handed operation.

Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Print

S$ 49.00

Quantity:

Add to my wishlist

More info

Specifications	Range	UT892
DC voltage (V)	6.000V/60.00V/600.0V/1000V/2000V	±(0.5%+3)
AC voltage (V)	6.000V/60.00V/600.0V/1000V/2000V	±(1.0%+3)
Variable frequency voltage (VFC)	600V	±(5%)
Frequency (Hz)	10Hz~10kHz	±(0.5%+2)
Resistance (Ω)	600.0Ω/6.000kΩ/60.00kΩ/6.000MΩ/60.00MΩ	±(0.5%+5)
Capacitance (F)	60.00nF/600.0nF~600.0μF/6000μF/60mF	±(3.0%+10)
Features
Display counts		6000
Auto/manual range		√
NCV		√
LIVE test		√
Diode		√
Continuity		√
Low battery indication	≤ Approximately 2.5V	√
Data hold		√
Max/Min		√
Relative mode		√
Auto power off	Approximately 15 minutes	√
Backlight		√
Safety rating	CAT II 1000V/CAT III 600V	√
General Characteristics
Power	AA 1.5V x2
Product color	Red+Gray
Product net weight	350g (Including batteries)
Product size	1878856mm
Standard accessories	English manual, test leads, batteries.
