New

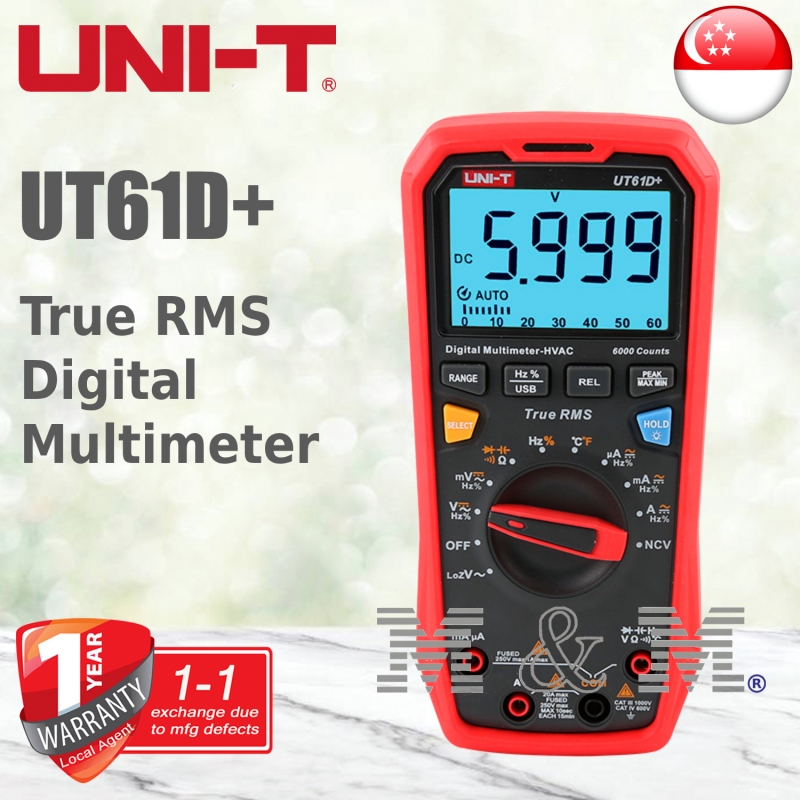

Uni-T UT61D+ 1000V True RMS Digital Multimeter

Model UT61D+

Condition New

UT61+ series are reliable true RMS digital multimeters with display counts 6000 (UT61B+/D+) and 22,000 (UT61E+). It can measure up to 1000V AC/DC.

Equipped with audible and visible alarm, this series can provide warning expecially when measuring high voltage/current and temperature.

Features of UT61+ Series 1000V True RMS Digital Multimeters

● True RMS

● Data hold/backlight

● Max/Min/Relative mode

● USB communication

● Input protection

● Diode/continuity test

● NCV (audible/visual alarm)

Currently out of stock, stocks to be replenished 2~4 weeks OR contact us for more details

Rating

S$ 92.00

Specifications	Range	UT61D+
AC voltage (V)	1000V	±(1%＋3)
DC voltage (V)	1000V	±(0.5%＋3)
AC current (A)	10A
AC current (A)	20A	±(1.2%＋5)
DC current (A)	10A
DC current (A)	20A	±(1%＋2)
Resistance (Ω)	60MΩ	±(1%＋2)
Resistance (Ω)	220MΩ
Capacitance (F)	60mF	±(3%＋5)
Capacitance (F)	220mF
Frequency (Hz)	10MHz	±(0.1%＋4)
Frequency (Hz)	220MHz
Duty cycle (%)	0.1%~99.9%	±(2%＋5)
Temperature (℃/℉)	-40℃~1000℃	±(1%＋3)
Temperature (℃/℉)	-40℉~1832℉	±(1%＋6)
Display count		6000
Bandwidth (Hz)		40Hz~1kHz
LPF ACV
LoZ ACV		√
ACV+DCV
Transistor hFE
Peak Hold		√
Analog bar		31
General Characteristics
Power	1.5V battery (R03) x 4
Product net weight	350g
Product size	190mm x 90mm x 50mm
Standard accessories	Battery, gold plated test leads, USB cable, temperature probe (UT61D+), multi-purpose socket (UT61E+), English manual
