UT890D+
New
The UT890D+ 6000-count true RMS digital multimeters are designed with large LCD display. The maximum measurable capacitance is 100mF, with fast response time of less than 12s. The NCV and continuity measurement have acousto-optic indications. UT890D+ has a LIVE function for distinguishing between live and neutral wires. In addition, it is equipped with the automatic fuse blown detection and high voltage protection.
1. Electrical switchboards
2. HVAC systems
3. Electrical circuit faults detection
4. Installation or maintenance of electronics/factory equipment
5. Electronics component development, circuit board design
6. Users who need to distinguish between neutral/live wire frequently
10 Item Items
Hurry, Selling Fast!
Availability date:
By buying this product you can collect up to 2 loyalty points. Your cart will total 2 points that can be converted into a voucher of S$ 0.40.

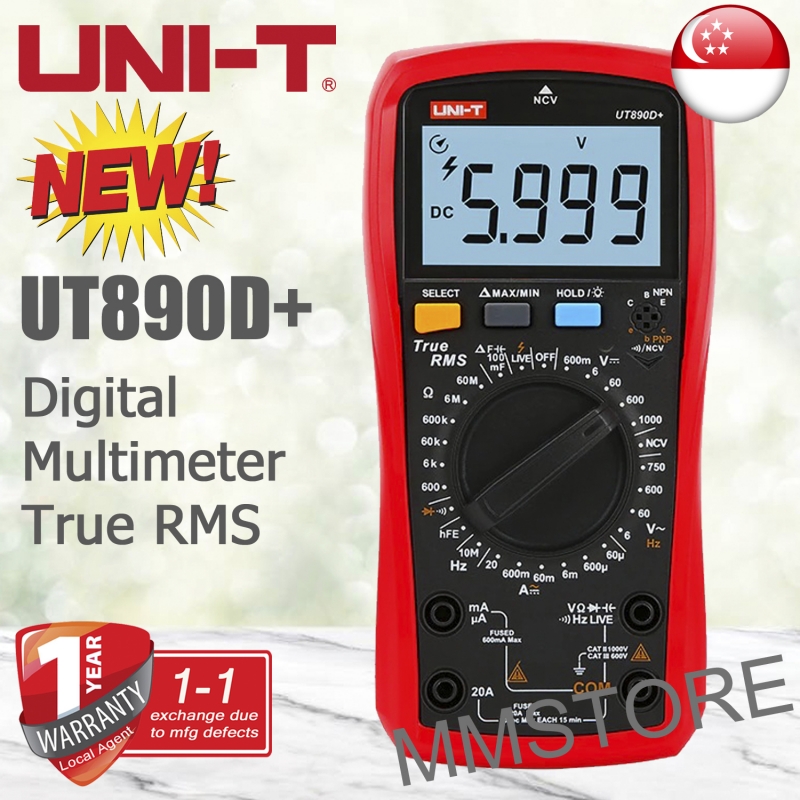

Uni-T UT890D+ Digital Multimeter
The UT890D+ 6000-count true RMS digital multimeters are designed with large LCD display. The maximum measurable capacitance is 100mF, with fast response time of less than 12s. The NCV and continuity measurement have acousto-optic indications. UT890D+ has a LIVE function for distinguishing between live and neutral wires. In addition, it is equipped with the automatic fuse blown detection and high voltage protection.
1. Electrical switchboards
2. HVAC systems
3. Electrical circuit faults detection
4. Installation or maintenance of electronics/factory equipment
5. Electronics component development, circuit board design
6. Users who need to distinguish between neutral/live wire frequently
Recipient :
* Required fields
or Cancel
Specification | Range | UT890D+ |
DC Voltage | 600mV/6V/60V/600V/1000V | ±(0.5%+2) |
AC Voltage | 6V/60V/600V/750V | ±(0.8%+3) |
ACV Frequency | 10Hz~10kHz | ±(0.1%+5) |
DC Current | 60uA//600uA/6mA/60mA/600mA/20A | ±(0.8%+8) |
AC Current | 60uA/600uA/6mA/60mA/600mA/20A | ±(1%+12) |
Resistance | 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ | ±(0.8%+3) |
Capacitor | 6.000nF/60.00nF/600.0nF/6.000μF/60.00μF 600.0μF/6.000mF/60.00mF/100.0mF |
±(3%+10) |
Frequency | 9.999Hz~9.999MHz | ±(1.0%+5) |
Features | ||
Display Count | 6000 | |
Manual Range | √ | |
NCV | √ | |
hFE | √ | |
Diode Test | √ | |
Continuity Test | √ | |
Live | √ | |
True RMS | √ | |
Fuse blowing alarm | √ | |
Acousto-optic indication(NCV/continuity) | √ | |
High voltage false detection | 1000Vrms | √ |
Current (AC/DC) mode memory | √ | |
Over-current alarm | ≥20A | √ |
Low Battery Indication | ≤2.5V | √ |
Data Hold | √ | |
REL | √ | |
Max/Min | V 、A | √ |
Auto Power Off | 15Min | √ |
Back light | 30s | √ |
Operation Temperature | 0℃~40℃ | |
Safety | CAT Ⅱ 1000V/CAT III 600V | |
General Characteristics | ||
Power | 1.5V x 2 | |
Product color | Red and Gray | |
Product Net Weight | 346g | |
Product Size | 183mm x 88mm x 56mm |
