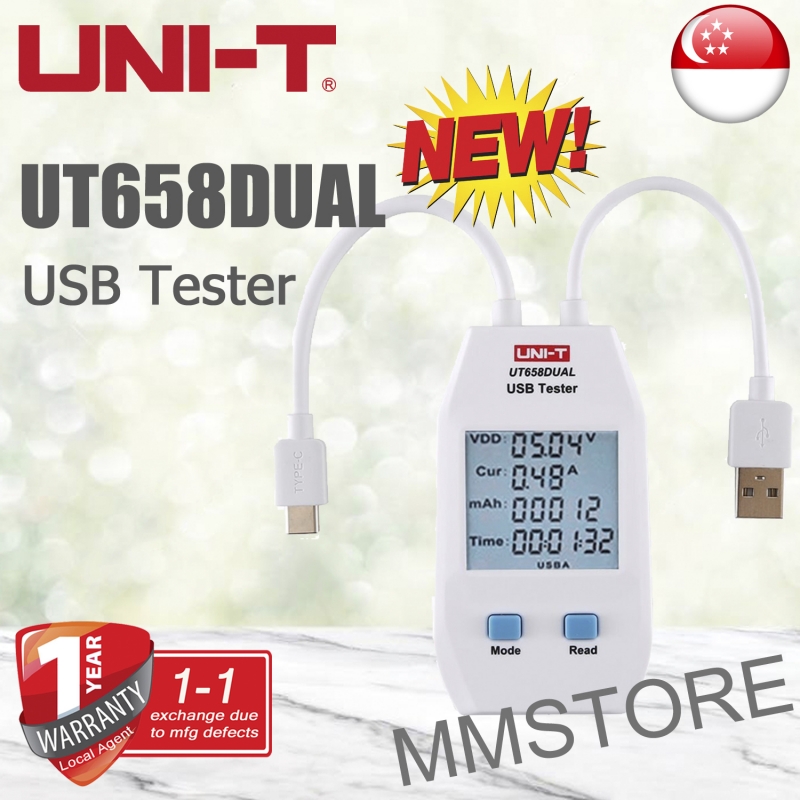

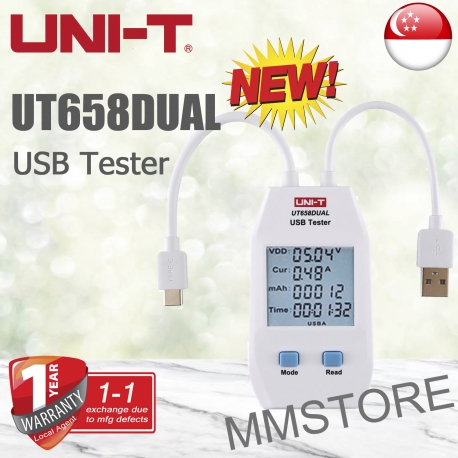

UNI-T UT658DUAL USB Tester

Model UT658DUAL

Condition New

UT658 series USB testers are used to inspect USB chargers and portable power source of electronics products. UT658 series can output voltage, current, and power.

Applications:

Users can use these devices to monitor charging status of any USB powered device.

Ex-stock subject to prior sales, otherwise lead time 6 to 8 weeks

More details

5 Item Items

Write a review

By buying this product you can collect up to 1 loyalty point. Your cart will total 1 point that can be converted into a voucher of S$ 0.20.

Send to a friend

Send to a friend

UNI-T UT658DUAL USB Tester

UT658 series USB testers are used to inspect USB chargers and portable power source of electronics products. UT658 series can output voltage, current, and power.

Applications:

Users can use these devices to monitor charging status of any USB powered device.

Ex-stock subject to prior sales, otherwise lead time 6 to 8 weeks

Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Print

S$ 19.00

Quantity:

Add to my wishlist

More info

Description	UT658DUAL
Input & Output ports (Type A)		√
Input & Output ports (Type C)		√
Data/charging protocol		2.0/(3.0/4.0)
Voltage range	4~24VDC, resolution: 0.01V	√
Current range (Type-A)	0.05~3ADC, resolution: 0.01A	√
Current range (Type-C)	0.05~5ADC, resolution: 0.01A	√
Capacity	0~99999mAh, resolution: 1mAh	√
Energy	0~1000Wh	√
Circuit equivalent resistance measurement	1~480Ω	√
USB data cable voltage (D+, D-)	0~3.3V	√
Data storage	10 sets	√
Maximum recording time	99h, 59min, 59sec; resolution: 1s	√
Fast charge protocol (Type-A)	QC 3.0 fast charge protocol	√
Fast charge protocol (Type-C)	QC 4.0 fast charge protocol	√
General Characterisitics
Product color	White
Product net weight	65.8g
Product size	93mm x 55mm x 13mm
