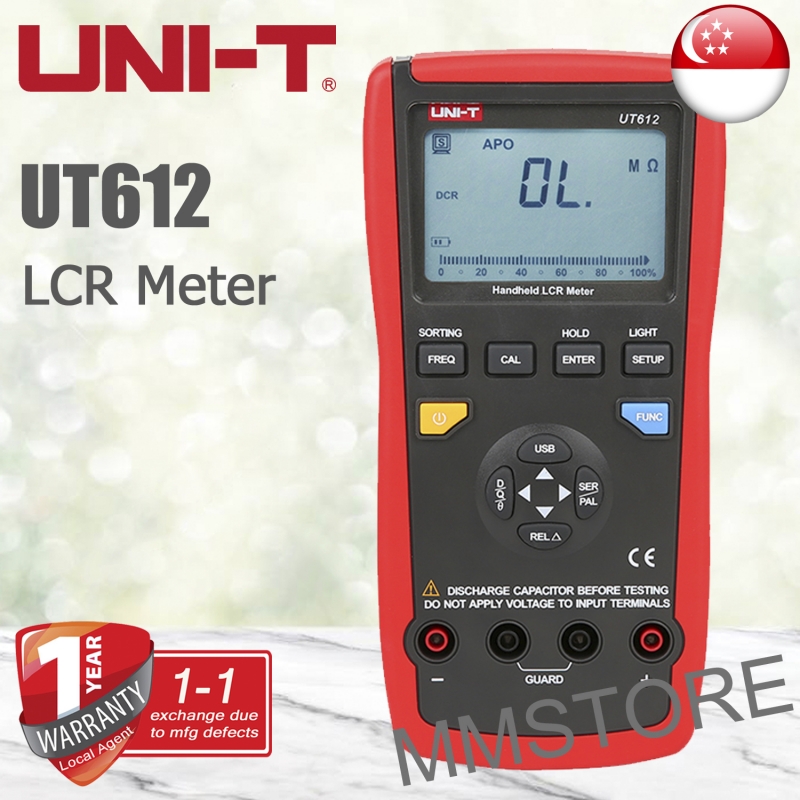

UNI-T UT612 LCR Meter

UT612

New

UT612 LCR meter is a more advanced meter used to measure inductance, capacitance and resistance.Advanced features include series/parallel measurement modes,quality factor/loss/phase angle measurements, equivalent/DC resistance measurements and 5 kinds of measurement frequency in AC mode for selection. UT612 can be easily operated in production lines, component inspection and electronic maintenance.

1. Portable design,convenient to carry.
2. With LCD Backlight,can read data in dark.
3. High precision, stable performance,simple operate.
4. Low power dissipation, high accuracy and fast speed.
5.Used for measuring and filtratingthe inductance, capacitance and resistance of lab, production line, maintenancepoint and teaching.

Ex-stock subject to prior sales, otherwise lead time 6 to 8 weeks

More details

3 Items

Hurry, Selling Fast!

By buying this product you can collect up to 22 loyalty points. Your cart will total 22 points that can be converted into a voucher of S$ 4.40.


S$ 229.00

More info

Specifications Range UT612
Inductance (H) 20uH~2000H ±(0.5%+5)
Capacitance (F) 200pF~20mF ±(0.5%+5)
Resistance (Ω) 20Ω~200MΩ ±(0.3%+5)
Test frequency (Hz) 100Hz/120Hz/1kHz/10kHz/100kHz
Operating voltage 0.6Vrms
Test parameters L/C/R/DCR/Q/D/θ/ESR
Features
Display count   20000
D/Q display count   2000
D/Q resolution 0.001
Auto range
Test frequency real-time display
Measurement mode Series/Parallel
Auto power off
Low battery indication ≤6.8V
Data hold
Relative mode
USB interface
USB interface/PC data records   60000
LCD backlight
Analog bar graph   26
Deviation ratio measurement
Comparison function
Calibration function
Output impedance 120Ω
Auto LCR check and measurement
General Characterisitics
Power 9V battery (6F22) or USB
Display 40mm x 63mm
Product color Red and grey
Product net weight 374g
Product size 96mm x 193mm x 47mm
Standard accessories Battery, SMD test clamp, USB interface cable, multi-purpose socket, PC software CD
