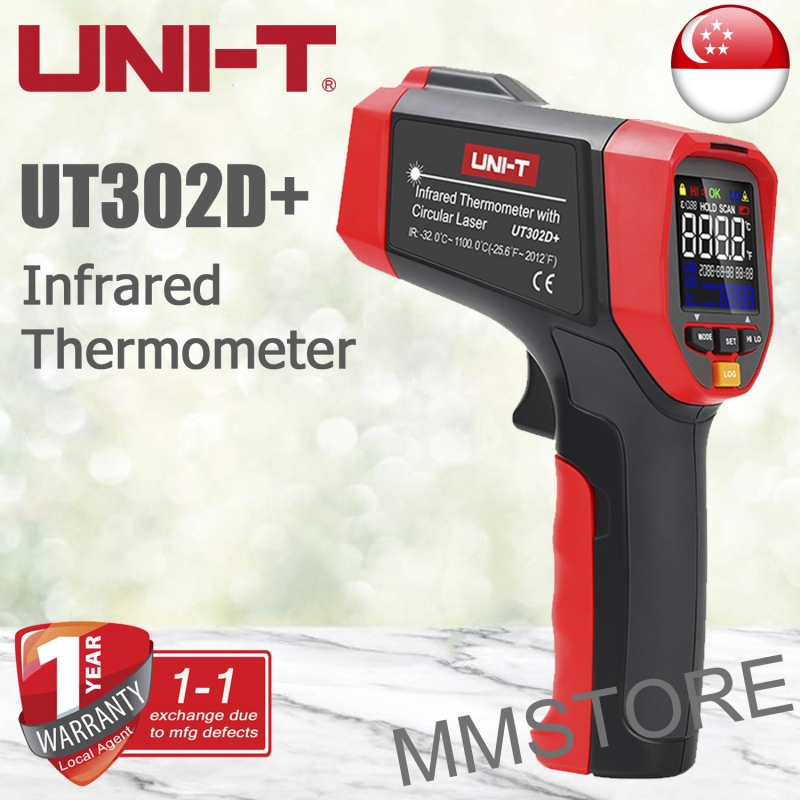

UNI-T UT302D+ Infrared Thermometer -32℃~1100℃

Model UT302D+

Condition New

UT302 series is a professional non-contact infrared thermometer that can determine the temperature by testing the infrared energy on the surface. It is used for fast and safe fault detections and maintenance of electric instrument and equipment, engines, motors, and HVAC refrigeration system.

1. 20:1 D:S ratio

2. Adjustable emissivity 0.1~1.0

3. ±1.5℃ temperature measurement accuracy

4. User defined visual and audio alarm

5. High contrast EBTN color display

6. MAX/MIN/AVG/DIFF/Hold modes

Ex-stock subject to prior sales, otherwise lead time 6 to 8 weeks

More details

5 Item Items

Write a review

By buying this product you can collect up to 10 loyalty points. Your cart will total 10 points that can be converted into a voucher of S$ 2.00.

Send to a friend

Send to a friend

UNI-T UT302D+ Infrared Thermometer -32℃~1100℃

UT302 series is a professional non-contact infrared thermometer that can determine the temperature by testing the infrared energy on the surface. It is used for fast and safe fault detections and maintenance of electric instrument and equipment, engines, motors, and HVAC refrigeration system.

1. 20:1 D:S ratio
2. Adjustable emissivity 0.1~1.0

3. ±1.5℃ temperature measurement accuracy

4. User defined visual and audio alarm

5. High contrast EBTN color display

6. MAX/MIN/AVG/DIFF/Hold modes

Ex-stock subject to prior sales, otherwise lead time 6 to 8 weeks

Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Print

S$ 105.00

Quantity:

Add to my wishlist

More info

Specifications	UT302D+
Temperature range	-32℃~1100℃
	-25.6℉~2012℉
Accuracy	≥0℃: ±1.5℃ or ±1.5%; <0℃: ±(1.5℃+0.1℃/℃)
	≥32℉: ±3.0℉ or ±1.5%; <32℉: ±(3.0℉+0.1℉/℉)
Repeatability	0.7℃ or 0.7% (1.5℉ or 0.7%)
D:S ratio	20:1
Response time	250ms
Emissivity	0.1~1.0 (adjustable, stores 5 sets of preset values)
Spectral response	8um~14um
Laser power	< 1mW
Features
Auto power off	√
Low battery indication	√
LCD display	Color EBTN
High/low LED alarm	√
High/low audible alarm	√
Data hold/Lock measurement	√
℃/℉ selection	√
MAX/MIN/AVG/DIFF mode	√
Data storage with date and time	99
Scheduled measurement	√
Backlight	√
Operating temperature	0℃~50℃ (32℉~122℉)
Storage temperature	-20℃~60℃ (-4℉~140℉)
Operating humidity	<90%RH (non-condensing)
Drop test	1m
Tripod mounting hole	√
General Characterisitics
Power	9V battery
Display	35mm x 35mm
Product color	Red and grey
Product net weight	310g
Product size	172mm x 113.5mm x 53mm
Standard accessories	Battery, carrying bag
