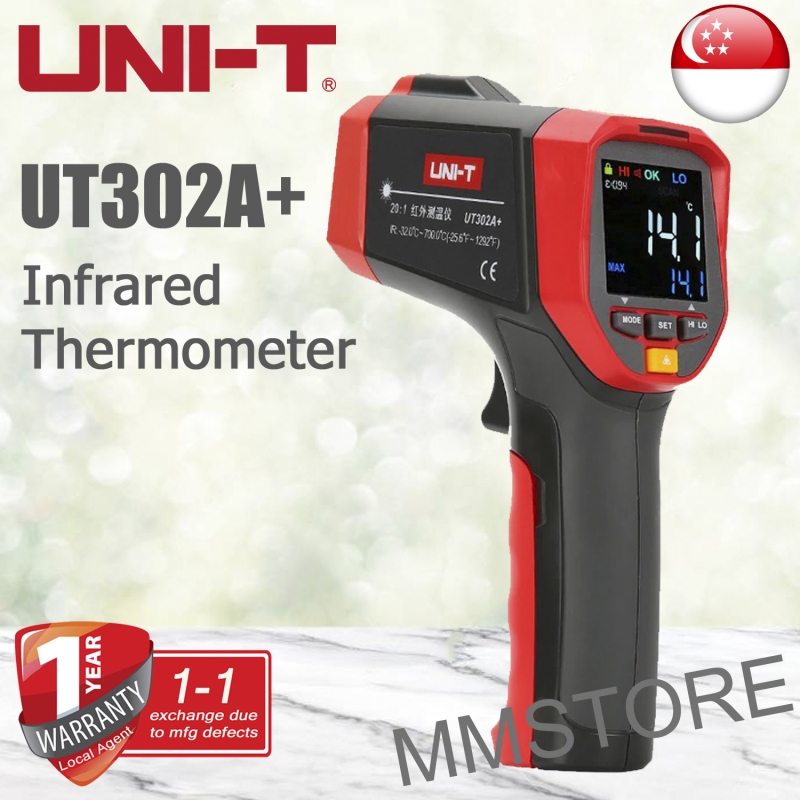

UNI-T UT302A+ Infrared Thermometer -32℃~700℃

UT302A+

New

UT302 series is a professional non-contact infrared thermometer that can determine the temperature by testing the infrared energy on the surface. It is used for fast and safe fault detections and maintenance of electric instrument and equipment, engines, motors, and HVAC refrigeration system.

1. 20:1 D:S ratio
2. Adjustable emissivity 0.1~1.0
3. ±1.5℃ temperature measurement accuracy
4. User defined visual and audio alarm
5. High contrast EBTN color display
6. MAX/MIN/AVG/DIFF/Hold modes

Ex-stock subject to prior sales, otherwise lead time 6 to 8 weeks

More details

Currently out of stock, stocks to be replenished 2~4 weeks OR contact us for more details

By buying this product you can collect up to 9 loyalty points. Your cart will total 9 points that can be converted into a voucher of S$ 1.80.


S$ 90.00

More info

Specifications UT302A+
Temperature range -32℃~700℃
-25.6℉~1292℉
Accuracy ≥0℃: ±1.5℃ or ±1.5%; <0℃: ±(1.5℃+0.1℃/℃)
≥32℉: ±3.0℉ or ±1.5%; <32℉: ±(3.0℉+0.1℉/℉)
Repeatability 0.7℃ or 0.7% (1.5℉ or 0.7%)
D:S ratio 20:1
Response time 250ms
Emissivity 0.1~1.0 (adjustable, stores 5 sets of preset values)
Spectral response 8um~14um
Laser power < 1mW
Features
Auto power off
Low battery indication
LCD display Color EBTN
High/low LED alarm
High/low audible alarm
Data hold/Lock measurement
℃/℉ selection
MAX/MIN/AVG/DIFF mode
Data storage with date and time -
Scheduled measurement -
Backlight
Operating temperature 0℃~50℃ (32℉~122℉)
Storage temperature  -20℃~60℃ (-4℉~140℉)
Operating humidity <90%RH (non-condensing)
Drop test 1m
Tripod mounting hole
General Characterisitics
Power 9V battery
Display 35mm x 35mm
Product color Red and grey
Product net weight 310g
Product size 172mm x 113.5mm x 53mm
Standard accessories Battery, carrying bag
