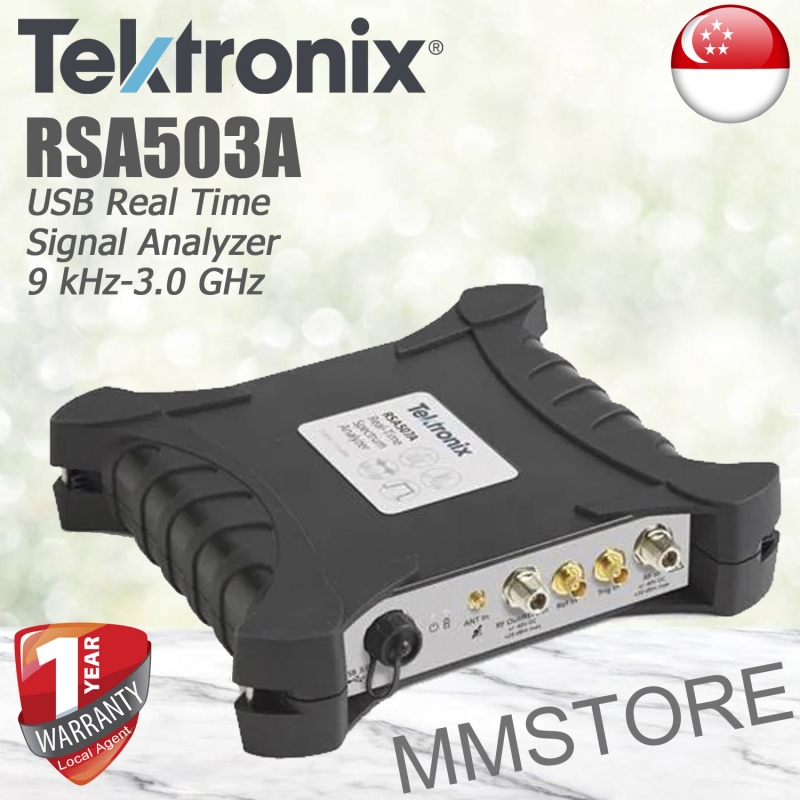

Tektronix RSA503A Real Time Spectrum Analyzers

RSA503A

New

The RSA500 provides performance to match conventional mid-range spectrum analyzers on the market. With real-time sweeps and a 4x faster scanning capability compared to other spectrum analyzers, you won’t miss signals you need to see and complete tasks faster. No compromises for even your toughest challenges.

• 9 kHz to 3.0/7.5/13.6/18.0 GHz frequency range covers a broad range of analysis needs
• 40 MHz acquisition bandwidth enables real time analysis for transient capture and vector analysis
• High speed full-span sweeps (70 GHz/sec) for fast setup and discovery
• Standard GPS/GLONASS/Beidou receiver for mapping
• Optional tracking generator for gain/loss, antenna and cablemeasurements
• DataVu-PC software enables multi-unit recording in variable bandwidths

More details

Currently out of stock, stocks to be replenished 2~4 weeks OR contact us for more details

By buying this product you can collect up to 1460 loyalty points. Your cart will total 1460 points that can be converted into a voucher of S$ 292.00.


S$ 14,600.00

More info

Reviews

Write a review

Tektronix RSA503A Real Time Spectrum Analyzers

Tektronix RSA503A Real Time Spectrum Analyzers

The RSA500 provides performance to match conventional mid-range spectrum analyzers on the market. With real-time sweeps and a 4x faster scanning capability compared to other spectrum analyzers, you won’t miss signals you need to see and complete tasks faster. No compromises for even your toughest challenges.

• 9 kHz to 3.0/7.5/13.6/18.0 GHz frequency range covers a broad range of analysis needs
• 40 MHz acquisition bandwidth enables real time analysis for transient capture and vector analysis
• High speed full-span sweeps (70 GHz/sec) for fast setup and discovery
• Standard GPS/GLONASS/Beidou receiver for mapping
• Optional tracking generator for gain/loss, antenna and cablemeasurements
• DataVu-PC software enables multi-unit recording in variable bandwidths
