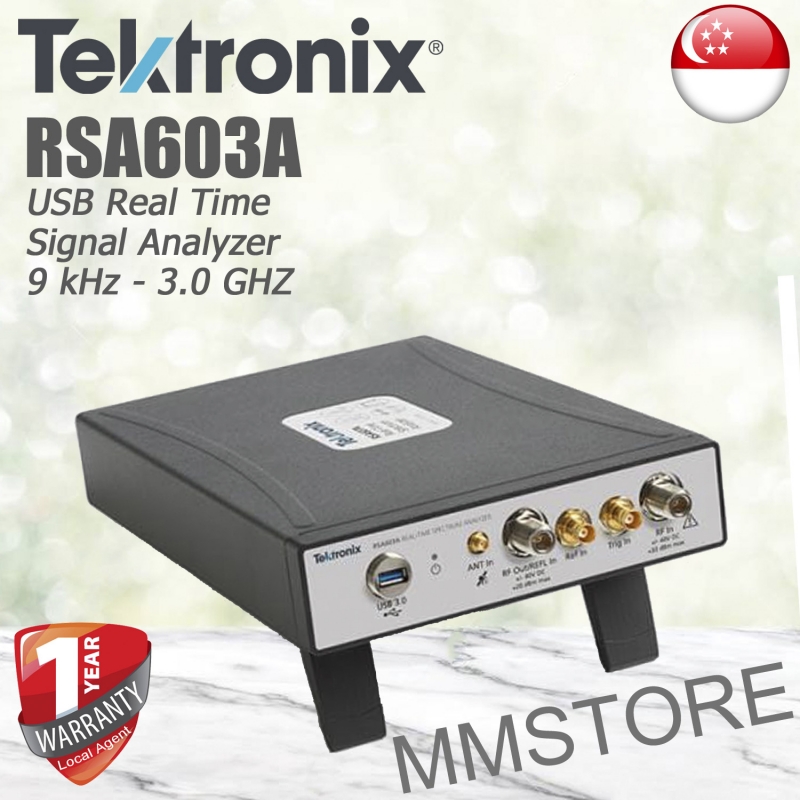

Tektronix RSA603A Real Time Spectrum Analyzers

RSA603A

New

The RSA600 series brings real-time spectrum analysis and wide analysis bandwidth to solving the problems of engineers who need to characterize, validate and manufacture their designs. The heart of the system is the USB-based RF spectrum  analyzer that captures 40 MHz bandwidths with great fidelity. With 70 dB dynamic range and frequency coverage to 7.5 GHz, you can fully characterize wideband signals up to 40 MHz bandwidths. The USB form factor moves the processing power to the PC of your choice, so you decide when you need more processing power or memory.

• 9 kHz to 3.0/7.5 GHz frequency range covers a broad range of analysis needs
• 40 MHz acquisition bandwidth enables real time analysis for transient capture and vector analysis
• Amplitude accuracy of 0.2 dB to 3 GHz (95% confidence)
• High speed full-span sweeps (25.0 GHz/sec) for fast setup and discovery
• Standard GPS/GLONASS/Beidou receiver
• Optional tracking generator for gain/loss, antenna and cable measurements
• DataVu-PC software enables multi-unit recording in variable bandwidths

More details

Currently out of stock, stocks to be replenished 2~4 weeks OR contact us for more details

By buying this product you can collect up to 1540 loyalty points. Your cart will total 1540 points that can be converted into a voucher of S$ 308.00.


S$ 15,400.00

More info

Reviews

Write a review

Tektronix RSA603A Real Time Spectrum Analyzers

Tektronix RSA603A Real Time Spectrum Analyzers

The RSA600 series brings real-time spectrum analysis and wide analysis bandwidth to solving the problems of engineers who need to characterize, validate and manufacture their designs. The heart of the system is the USB-based RF spectrum  analyzer that captures 40 MHz bandwidths with great fidelity. With 70 dB dynamic range and frequency coverage to 7.5 GHz, you can fully characterize wideband signals up to 40 MHz bandwidths. The USB form factor moves the processing power to the PC of your choice, so you decide when you need more processing power or memory.

• 9 kHz to 3.0/7.5 GHz frequency range covers a broad range of analysis needs
• 40 MHz acquisition bandwidth enables real time analysis for transient capture and vector analysis
• Amplitude accuracy of 0.2 dB to 3 GHz (95% confidence)
• High speed full-span sweeps (25.0 GHz/sec) for fast setup and discovery
• Standard GPS/GLONASS/Beidou receiver
• Optional tracking generator for gain/loss, antenna and cable measurements
• DataVu-PC software enables multi-unit recording in variable bandwidths
