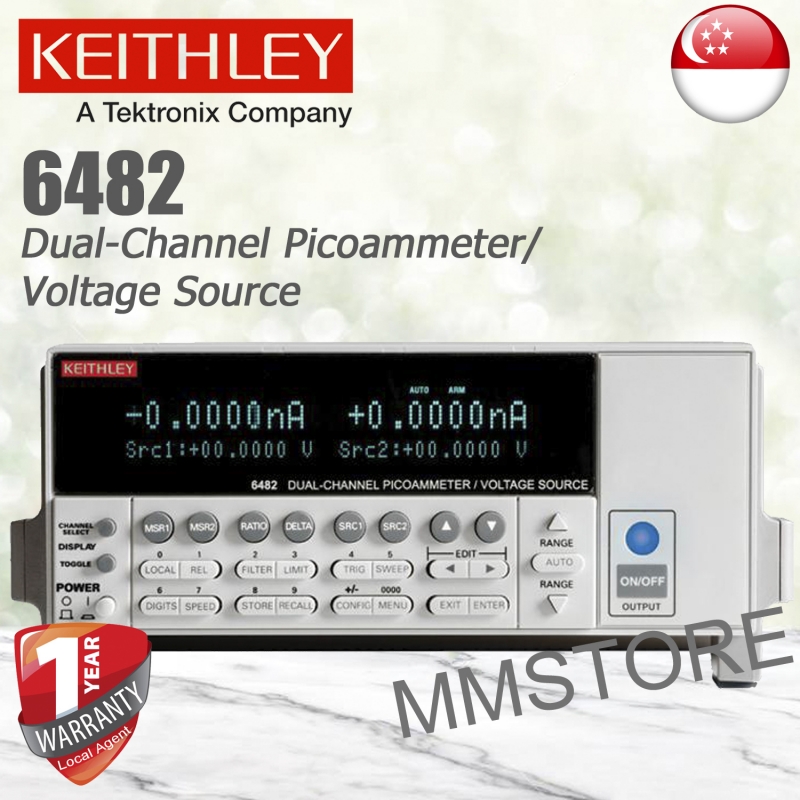

Keithley 6482 Dual-Channel Picoammeter/ Voltage Source

6482

New

The Model 6482 Dual-Channel Picoammeter/Voltage Source provides two independent picoammeter/voltage source channels for a wide range of low-level measurement applications that require dual-channel measurements. Building off of the proven measurement capabilities of Keithley’s Model 6485 5½-digit
Picoammeter, the Model 6482 adds higher measurement resolution, a second measurement channel,
and dual, independent 30V voltage bias sources.

• Dual-channel, 6½-digit measurement capability
• Dual ±30V bias sources
• Measure currents up to 20mA
• Measure currents with 1fA resolution
• 0–10V analog output for high resolution measurement feedback
• Supports assembly process, final testing, parts binning, and specification
• 3000-point buffer memory on each channel allows data transfer after test completion

More details

Currently out of stock, stocks to be replenished 2~4 weeks OR contact us for more details

By buying this product you can collect up to 1110 loyalty points. Your cart will total 1110 points that can be converted into a voucher of S$ 222.00.


S$ 11,100.00

More info

Reviews

Write a review

Keithley 6482 Dual-Channel Picoammeter/ Voltage Source

Keithley 6482 Dual-Channel Picoammeter/ Voltage Source

The Model 6482 Dual-Channel Picoammeter/Voltage Source provides two independent picoammeter/voltage source channels for a wide range of low-level measurement applications that require dual-channel measurements. Building off of the proven measurement capabilities of Keithley’s Model 6485 5½-digit
Picoammeter, the Model 6482 adds higher measurement resolution, a second measurement channel,
and dual, independent 30V voltage bias sources.

• Dual-channel, 6½-digit measurement capability
• Dual ±30V bias sources
• Measure currents up to 20mA
• Measure currents with 1fA resolution
• 0–10V analog output for high resolution measurement feedback
• Supports assembly process, final testing, parts binning, and specification
• 3000-point buffer memory on each channel allows data transfer after test completion
