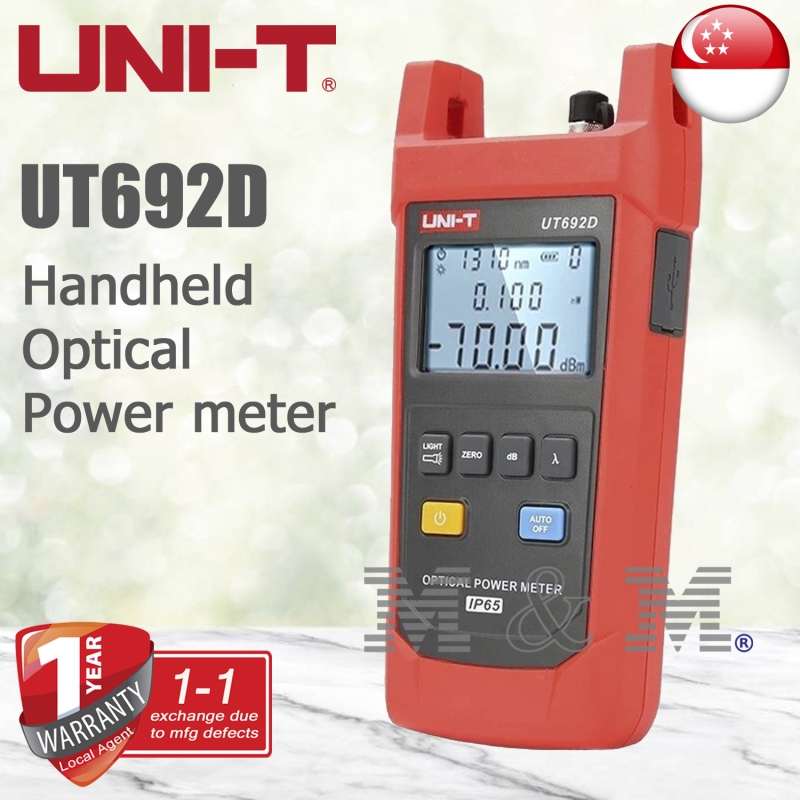

UNI-T UT692D Optical Power Meters

Model UT692D

Condition New

The UT692 series handheld optical power meters are used to measure absolute optical power or relative loss of optical power through length of fiber optic wires. UT692 series are designed to be durable, the meters can withstand 2m drop and have a dust/water resistance rating of IP65. In addition, UT692’s other features include backlight display, flashlight, auto power off, wavelength storage/recall, user calibration, and ultra-wide optical power test range.

Features of UT692 Series Optical Power Meters

Certifications: CE, UKCA

● Low battery indication

● Auto power off

● IP65/2m drop proof

● Flashlight

Ex-stock subject to prior sales, otherwise lead time 6 to 8 weeks

More details

Currently out of stock, stocks to be replenished 2~4 weeks OR contact us for more details

Write a review

Send to a friend

Send to a friend

UNI-T UT692D Optical Power Meters

The UT692 series handheld optical power meters are used to measure absolute optical power or relative loss of optical power through length of fiber optic wires. UT692 series are designed to be durable, the meters can withstand 2m drop and have a dust/water resistance rating of IP65. In addition, UT692’s other features include backlight display, flashlight, auto power off, wavelength storage/recall, user calibration, and ultra-wide optical power test range.

Features of UT692 Series Optical Power Meters

Certifications: CE, UKCA

● Low battery indication

● Auto power off

● IP65/2m drop proof

● Flashlight

Ex-stock subject to prior sales, otherwise lead time 6 to 8 weeks

Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Print

S$ 33.00

Add to my wishlist

More info

Specifications	UT692D
Measurement Range (dBm)	-70~+10
Wavelength Range (nm)	800-1700
Connector	Universal connector FC/SC/ST ( FC as standard, SC and ST adapter as options)
Detector Type	InGaAs
Uncertainty	±5%
Calibrated Wavelength (nm)	850, 980, 1300, 1310, 1490, 1550, 1625, 1650
Display Resolution	Linear: 0.1%, logarithmic: 0.01dBm
Auto Power Off (min)	10
Power Supply	1. 5V AA alkaline battery (3 pcs)
Low Battery Indication	Low battery indication at about 3.3V, auto power off at about 3V
Battery Operation Time (h)	≥60
Drop Height (M)	2
Operating Temperature	0℃~40℃
Storage Temperature	-10℃~50℃
Dimensions (mm)	189×87×45
Net Weight (g)	286
Certification	CE, IP65,RoHS
General Characteristics
Power	1.5V battery x 3
Product color	Red and grey
Product net weight	286g
Product size	189mm x 87mm x 45mm
Standard accessories	1.5V Batteries, English manual, Dedicated pouch
