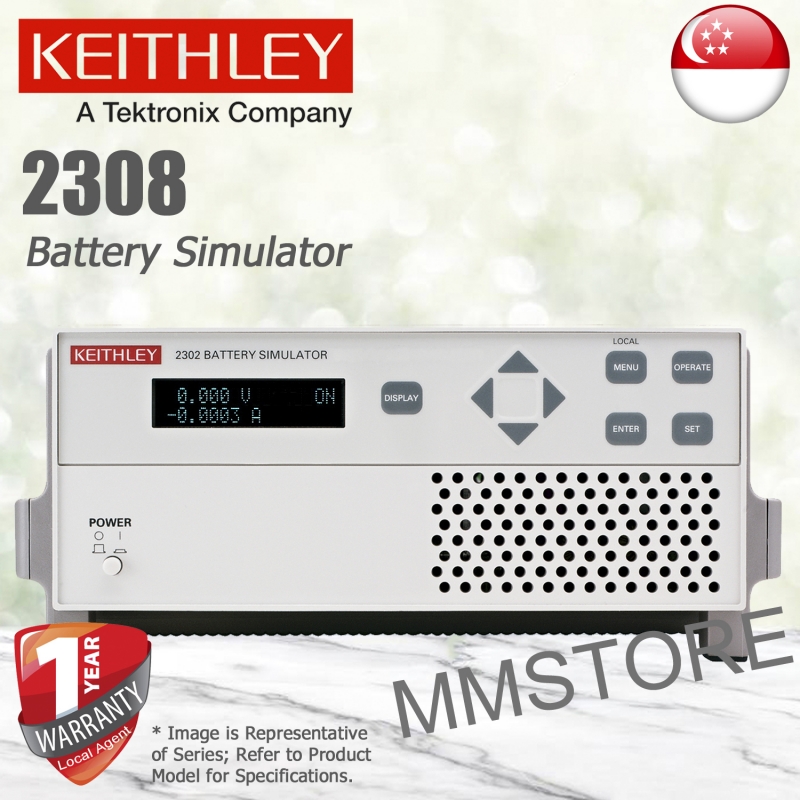

Keithley 2308 Battery Simulator and Precision DC Power Supply

Model 2308

Condition New

0 Item Items

Currently out of stock, stocks to be replenished 2~4 weeks OR contact us for more details

Hurry, Selling Fast!

Availability date:

Tweet Share Google+

By buying this product you can collect up to 752 loyalty points. Your cart will total 752 points that can be converted into a voucher of S$ 150.40.

• Send to a friend

  Send to a friend



  Keithley 2308 Battery Simulator and Precision DC Power Supply

  Series 2300 battery simulating power supplies can simulate both a battery's output resistance and output voltage response. The dual-channel versions of these power supplies provide one channel to act like a battery and sink current for simulating a discharged rechargeable battery; the other channel supplies voltage for testing a device’s charge control circuitry. The new 2306-LAN Dual-Channel Battery Charger / Simulator provides a LAN communication interface through the added RJ-45 connector on the rear of the instrument.

  • Ultrafast response to transient load currents
  • Choice of single- or dual-channel supplies
  • Optimized for development and testing of battery powered devices
  • Variable output resistance for simulating battery response at a fixed point (U.S. Patent No. 6,204,647)
  • Pulse peak, average, and baseline current measurements
  • 100 nA DC current sensitivity
  • Current step measure function
  • Sink up to 3 A
  • Open sense lead detection
  • Built-in digital voltmeter
