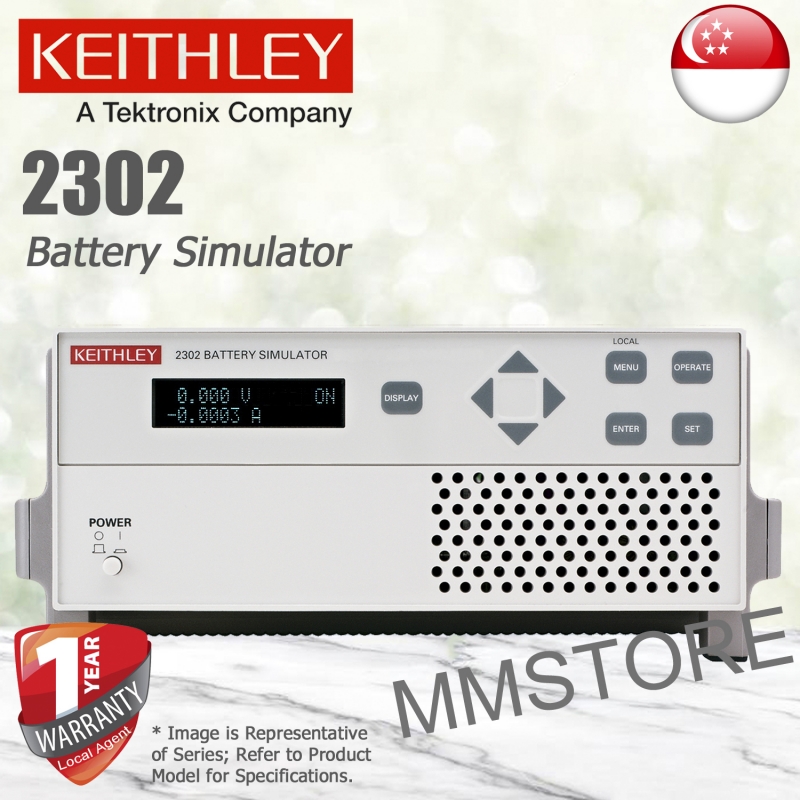

Keithley 2302 Battery Simulator and Precision DC Power Supply

2302

New

Series 2300 battery simulating power supplies can simulate both a battery's output resistance and output voltage response. The dual-channel versions of these power supplies provide one channel to act like a battery and sink current for simulating a discharged rechargeable battery; the other channel supplies voltage for testing a device’s charge control circuitry. The new 2306-LAN Dual-Channel Battery Charger / Simulator provides a LAN communication interface through the added RJ-45 connector on the rear of the instrument.

• Ultrafast response to transient load currents
• Choice of single- or dual-channel supplies
• Optimized for development and testing of battery powered devices
• Variable output resistance for simulating battery response at a fixed point (U.S. Patent No. 6,204,647)
• Pulse peak, average, and baseline current measurements
• 100 nA DC current sensitivity
• Current step measure function
• Sink up to 3 A
• Open sense lead detection
• Built-in digital voltmeter

More details

Currently out of stock, stocks to be replenished 2~4 weeks OR contact us for more details

By buying this product you can collect up to 681 loyalty points. Your cart will total 681 points that can be converted into a voucher of S$ 136.20.


S$ 6,810.00

More info

Reviews

Write a review

Keithley 2302 Battery Simulator and Precision DC Power Supply

Keithley 2302 Battery Simulator and Precision DC Power Supply

Series 2300 battery simulating power supplies can simulate both a battery's output resistance and output voltage response. The dual-channel versions of these power supplies provide one channel to act like a battery and sink current for simulating a discharged rechargeable battery; the other channel supplies voltage for testing a device’s charge control circuitry. The new 2306-LAN Dual-Channel Battery Charger / Simulator provides a LAN communication interface through the added RJ-45 connector on the rear of the instrument.

• Ultrafast response to transient load currents
• Choice of single- or dual-channel supplies
• Optimized for development and testing of battery powered devices
• Variable output resistance for simulating battery response at a fixed point (U.S. Patent No. 6,204,647)
• Pulse peak, average, and baseline current measurements
• 100 nA DC current sensitivity
• Current step measure function
• Sink up to 3 A
• Open sense lead detection
• Built-in digital voltmeter
