New

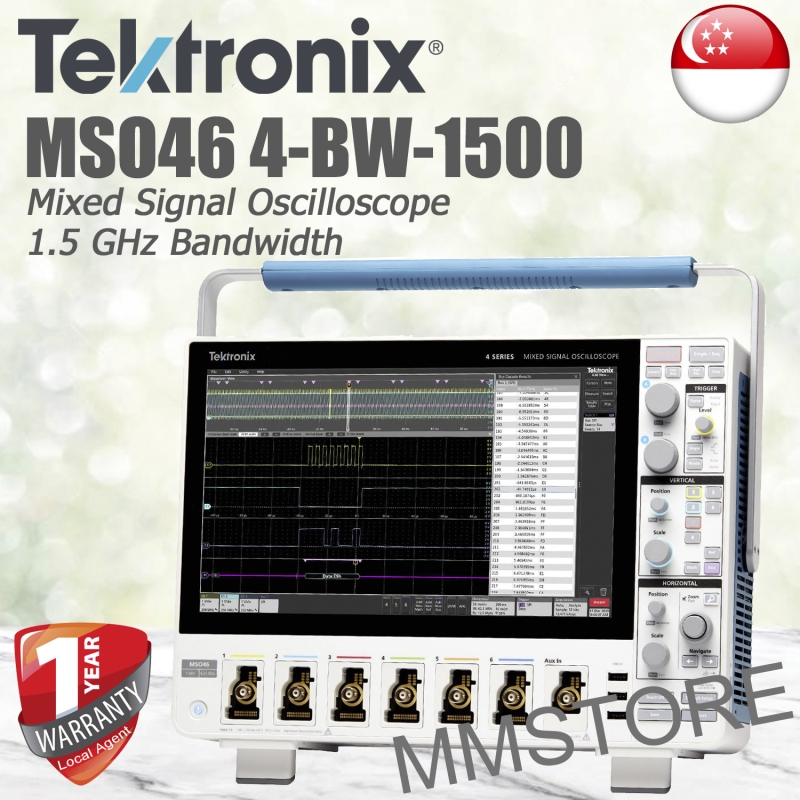

Tektronix MSO46 4-BW-1500 Mixed Signal Oscilloscope

MSO46 4-BW-1500

New

With the largest display and highest available channel count in its class, the 4 Series offers unprecedented insight in a bench-friendly package. And its made-for-touch user interface works exactly as you'd expect.

Input channels
• 4 or 6 FlexChannel® inputs
• Each FlexChannel provides:
• One analog signal that can be displayed as a waveform view, a
spectrum view1, or both simultaneously
• Eight digital logic inputs with TLP058 logic probe
Bandwidth (all analog channels)
• 200 MHz, 350 MHz, 500 MHz, 1 GHz, 1.5 GHz (upgradable)
Sample rate (all analog / digital channels)
• Real-time: 6.25 GS/s
Record length (all analog / digital channels)
• 31.25 Mpoints standard (62.5 Mpoints optional upgrade)
Waveform capture rate
• >500,000 waveforms/s
Vertical resolution
• 12-bit ADC
• Up to 16-bits in High Res mode

More details

Currently out of stock, stocks to be replenished 2~4 weeks OR contact us for more details

By buying this product you can collect up to 4860 loyalty points. Your cart will total 4860 points that can be converted into a voucher of S$ 972.00.


S$ 48,600.00

More info

Reviews

Write a review

Tektronix MSO46 4-BW-1500 Mixed Signal Oscilloscope

Tektronix MSO46 4-BW-1500 Mixed Signal Oscilloscope

With the largest display and highest available channel count in its class, the 4 Series offers unprecedented insight in a bench-friendly package. And its made-for-touch user interface works exactly as you'd expect.

Input channels
• 4 or 6 FlexChannel® inputs
• Each FlexChannel provides:
• One analog signal that can be displayed as a waveform view, a
spectrum view1, or both simultaneously
• Eight digital logic inputs with TLP058 logic probe
Bandwidth (all analog channels)
• 200 MHz, 350 MHz, 500 MHz, 1 GHz, 1.5 GHz (upgradable)
Sample rate (all analog / digital channels)
• Real-time: 6.25 GS/s
Record length (all analog / digital channels)
• 31.25 Mpoints standard (62.5 Mpoints optional upgrade)
Waveform capture rate
• >500,000 waveforms/s
Vertical resolution
• 12-bit ADC
• Up to 16-bits in High Res mode
