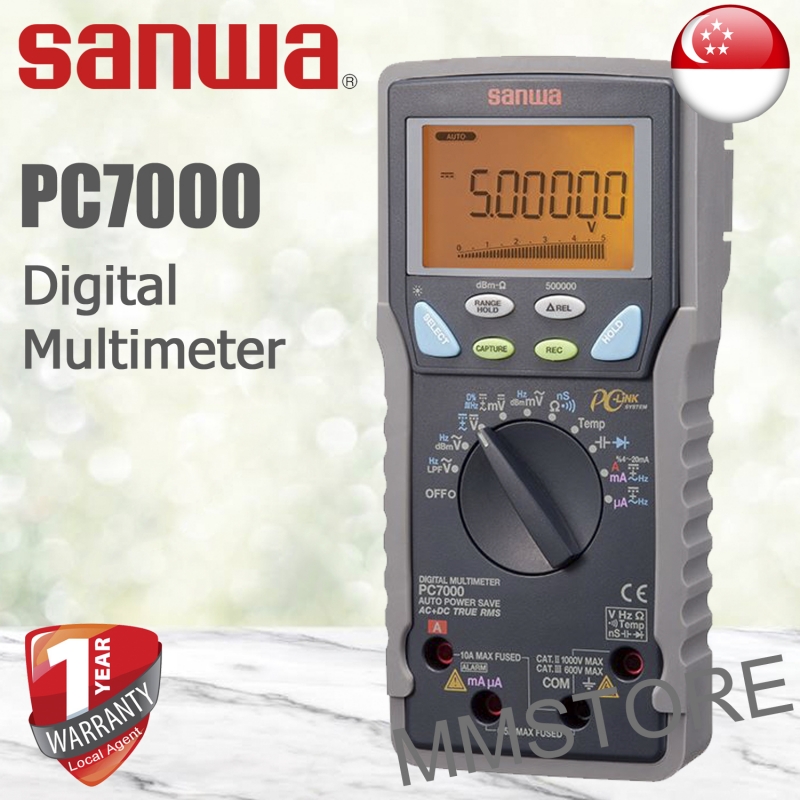

Sanwa PC7000 High Accuracy & High Resolution

PC7000

New

This instrument is a portable multimeter designed for the measurement of low-voltage circuit.
This is used at small communications equipments, home electric appliances, voltage of lump line, various types of
batteries, and circuit analyses with additional functions.


●AC True RMS / 50000 count(500000 count for DCV)
●0.03% best accuracy
●Dual display capability with Backlight to simultaneously display
voltage/current/frequency and AC/DC components of voltage/current
●High speed bar graph
●Low Pass Filter(LPF) useful for measurement of Variable Frequency Drive(VFD)
●Current(mA/μA)% 4-20mA measurement
●Conductance measurement / Capacitance measurement
●Temperature measurement(with K type thermocouple sensor : -50℃~1000℃)
●Frequency measurement(AC sine wave only)
●Logic frequency measurement
●Duty cycle measurement
●MAX, MIN, AVE value hold / Data hold / Range hold
●Relative value
●Auto power save(17min after the last operation)(cancelable)
●Backlight
●Protective holster with wall hanger and lead holder / Tilt stand
●PC Link system with optical Link USB cable (KB-USB7) and software(PC Link7)
*KB-USB7 and PC Link7 are optional accessories

More details

Currently out of stock, stocks to be replenished 2~4 weeks OR contact us for more details

By buying this product you can collect up to 49 loyalty points. Your cart will total 49 points that can be converted into a voucher of S$ 9.80.


S$ 499.00

More info

Reviews

Write a review

Sanwa PC7000 High Accuracy & High Resolution

Sanwa PC7000 High Accuracy & High Resolution

This instrument is a portable multimeter designed for the measurement of low-voltage circuit.
This is used at small communications equipments, home electric appliances, voltage of lump line, various types of
batteries, and circuit analyses with additional functions.


●AC True RMS / 50000 count(500000 count for DCV)
●0.03% best accuracy
●Dual display capability with Backlight to simultaneously display
voltage/current/frequency and AC/DC components of voltage/current
●High speed bar graph
●Low Pass Filter(LPF) useful for measurement of Variable Frequency Drive(VFD)
●Current(mA/μA)% 4-20mA measurement
●Conductance measurement / Capacitance measurement
●Temperature measurement(with K type thermocouple sensor : -50℃~1000℃)
●Frequency measurement(AC sine wave only)
●Logic frequency measurement
●Duty cycle measurement
●MAX, MIN, AVE value hold / Data hold / Range hold
●Relative value
●Auto power save(17min after the last operation)(cancelable)
●Backlight
●Protective holster with wall hanger and lead holder / Tilt stand
●PC Link system with optical Link USB cable (KB-USB7) and software(PC Link7)
*KB-USB7 and PC Link7 are optional accessories
