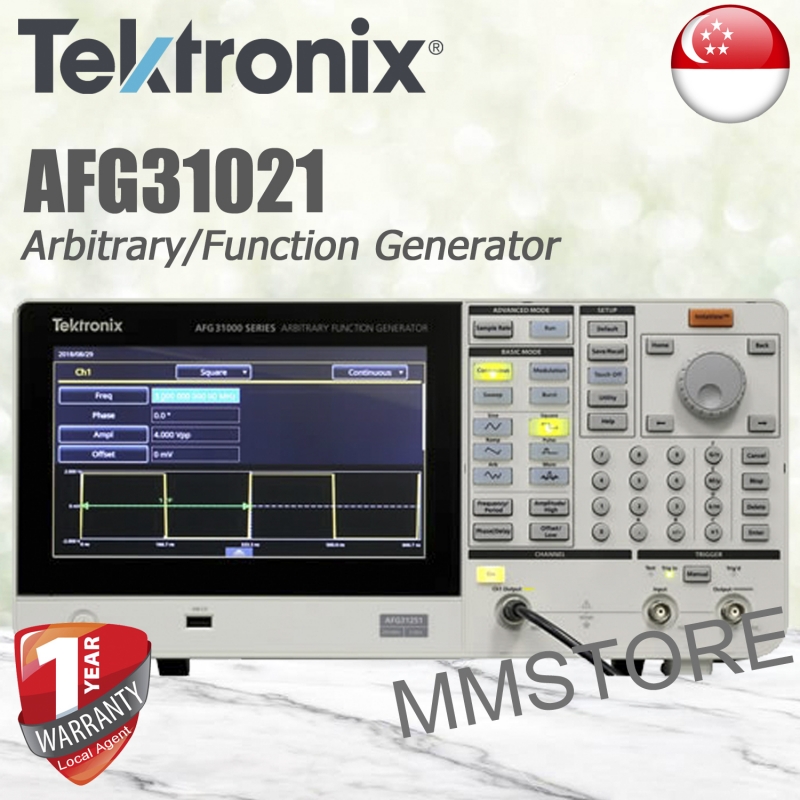

Tektronix AFG31021 Arbitrary Function Generators

AFG31021

New

Features & Benefits

  • 1 or 2 channel models
  • Output amplitude range 1 mVP-P to 10`VP-P into 50`Ω loads
  • Basic (AFG) mode:
    • 25 MHz, 50 MHz, 100 MHz, 150 MHz, or 250 MHz sine waveforms
    • 250 MSa/s, 1 GSa/s or 2 GSa/s sample rates
    • 14-bit vertical resolution
    • Built-in waveforms include sine, square, ramp, pulse, noise, and other frequently used waveforms
    • Sweep, Burst, and Modulation modes (AM, FM, PM, FSK, and PWM)
  • Advanced (Sequence) mode:
    • Continuous mode (optional Sequence, Triggered and Gated modes)
    • 16 Mpts arbitrary waveform memory on each channel (128 Mpts optional)
    • Up to 256 steps in sequence mode with loop, jump and wait events
    • Variable sampling clock 1 µSa/s to 2 GSa/s

Applications

    • Advanced research
    • Clock and system synchronization
    • Replication of real world signals
    • Component and circuit characterization and validation
    • Embedded circuit design and test
    • General purpose signal generation
    • Double pulse test

More details

Currently out of stock, stocks to be replenished 2~4 weeks OR contact us for more details

By buying this product you can collect up to 388 loyalty points. Your cart will total 388 points that can be converted into a voucher of S$ 77.60.


S$ 3,880.00

More info

Reviews

Write a review

Tektronix AFG31021 Arbitrary Function Generators

Tektronix AFG31021 Arbitrary Function Generators

Features & Benefits

  • 1 or 2 channel models
  • Output amplitude range 1 mVP-P to 10`VP-P into 50`Ω loads
  • Basic (AFG) mode:
    • 25 MHz, 50 MHz, 100 MHz, 150 MHz, or 250 MHz sine waveforms
    • 250 MSa/s, 1 GSa/s or 2 GSa/s sample rates
    • 14-bit vertical resolution
    • Built-in waveforms include sine, square, ramp, pulse, noise, and other frequently used waveforms
    • Sweep, Burst, and Modulation modes (AM, FM, PM, FSK, and PWM)
  • Advanced (Sequence) mode:
    • Continuous mode (optional Sequence, Triggered and Gated modes)
    • 16 Mpts arbitrary waveform memory on each channel (128 Mpts optional)
    • Up to 256 steps in sequence mode with loop, jump and wait events
    • Variable sampling clock 1 µSa/s to 2 GSa/s

Applications

    • Advanced research
    • Clock and system synchronization
    • Replication of real world signals
    • Component and circuit characterization and validation
    • Embedded circuit design and test
    • General purpose signal generation
    • Double pulse test
